MS35489 X Mil-Spec Silicone Rubber Grommet | High Temp / Low Temp Military Grommets

...performance in a broad range of temperatures...made from Silicone Rubber...

DeltaFlex supplied Mil-Spec Rubber Grommets can used in both military and industrial applications. Made from silicone rubber, these rubber grommets can perform in HIGH Temperature as well as LOW Temperature environments.

High Temp / Low Temp

High Temp / Low Temp Rubber Grommets can be perform in a broad range of temperatures and are made from Silicone Rubber.

MS35489-X - Mil-spec Silicone

Please keep in mind...

DeltaFlex is also a manufacturer of rubber parts, if you can not find the exact rubber parts you are looking for we can make it for you. If you need assistance please use the webform to the right or if you require immediate assistance, please call 262.632.2345.

Additionally, MS35489 - Mil-spec, AN931 - Army / Navy and AN931 (ALT) - Army / Navy Alternate Part Number Rubber Grommets are in separate lists and integrated with our Standard Rubber Grommets.

MS35489 X Mil-Spec Rubber Grommet | High Temp / Low Temp Silicone Military Grommets

Lets Get Started!

Quick Quote

REQUEST A QUOTE - MS35489 X Mil-Spec Silicone Rubber Grommet | High Temp / Low Temp Military Grommets

DeltaFlex is committed to providing you with the best customer experience possible.

Thank you for taking the time to learn about DeltaFlex and requesting a quote for our MS35489 X Mil-Spec Silicone Rubber Grommet | High Temp / Low Temp Military Grommets.

Our goal is to provide you with most efficient and effective customer support. The more information you can provide upfront, the more diligent we can be in getting a quote to you or assisting you with your request.

We know that your time is valuable. So, we have filled-in some of the information for you.

Thank you...for putting DeltaFlex to work for you.

Quick Quote

Ask A Question

Engineering Support

ENGINEERING ASSISTANCE - MS35489 X Mil-Spec Silicone Rubber Grommet | High Temp / Low Temp Military Grommets

DeltaFlex is committed to providing you with the best engineering support experience possible.

"Frequently vibration isolation problems require a system engineering analysis..." - Put us to work for you.

Thank you for taking the time to learn about DeltaFlex and our MS35489 X Mil-Spec Silicone Rubber Grommet | High Temp / Low Temp Military Grommets. Our applications engineer will help find the right solution for your application.

Our goal is to provide you with most efficient and effective engineering support. The more information you can provide upfront, the more diligent we can be in assisting you with your request.

We know that your time is valuable. So, we have filled-in some of the information for you.

Thank you...for putting DeltaFlex to work for you.

Engineering Support

Please note:

If you or your customer require a PPAP or detailed material test data sheet, a fee and minimum order quantity may be required.

If you need assistance please use the webform to the right or if you require immediate assistance, please call 262.632.2345.

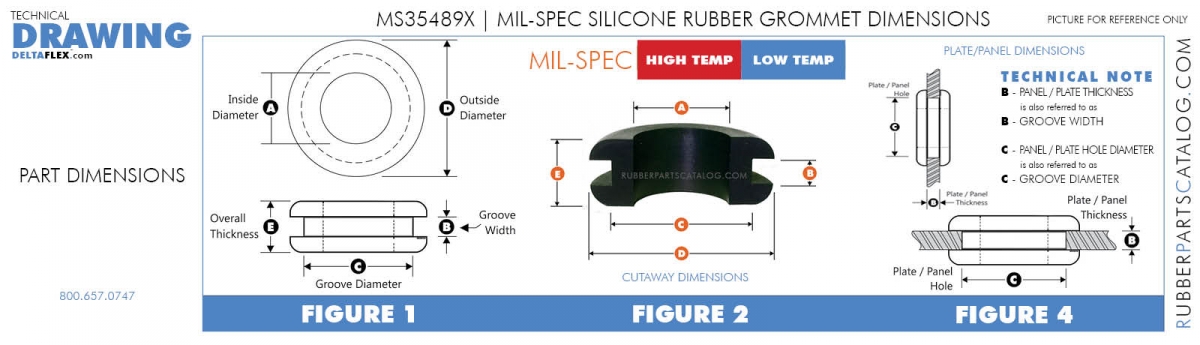

Silicone Mil-Spec Grommets - High Temp Low Temp

Specs

Dimensions

Dimensions Metric

reset matrix

clear Part #	clear Plate Thickness (in.)	clear Plate Hole (In.)	clear Part Type	clear Application	clear Material	clear Duro (+/- 5)	clear Color
MS35489-1X	0.063 in.	0.250 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-2X	0.063 in.	0.563 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-4X	0.063 in.	0.313 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-5X	0.063 in.	0.625 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-6X	0.063 in.	0.438 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-7X	0.063 in.	0.750 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-8X	0.063 in.	1.000 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-9X	0.063 in.	0.563 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-10X	0.063 in.	0.750 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-11X	0.063 in.	0.625 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-12X	0.063 in.	1.000 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-13X	0.063 in.	0.688 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-14X	0.063 in.	0.813 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-15X	0.063 in.	1.250 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-16X	0.063 in.	0.813 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-17X	0.063 in.	0.875 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-18X	0.063 in.	1.250 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-19X	0.063 in.	1.000 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-20X	0.063 in.	1.063 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-21X	0.063 in.	1.438 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-22X	0.063 in.	1.250 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-23X	0.063 in.	1.375 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-24X	0.063 in.	1.875 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-27X	0.063 in.	1.750 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-28X	0.063 in.	2.750 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-31X	0.125 in.	0.563 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-32X	0.125 in.	1.000 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-33X	0.125 in.	0.313 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-34X	0.125 in.	0.625 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-35X	0.125 in.	0.438 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-36X	0.125 in.	0.750 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-37X	0.125 in.	1.000 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-38X	0.125 in.	0.563 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-39X	0.125 in.	0.750 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-40X	0.125 in.	0.625 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-41X	0.125 in.	1.000 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-42X	0.125 in.	0.688 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-43X	0.125 in.	0.813 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-44X	0.125 in.	1.250 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-45X	0.125 in.	0.813 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-46X	0.125 in.	0.875 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-47X	0.125 in.	1.250 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-48X	0.125 in.	1.000 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-49X	0.125 in.	1.063 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-50X	0.125 in.	1.438 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-51X	0.125 in.	1.250 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-52X	0.125 in.	1.375 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-53X	0.125 in.	1.875 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-54X	0.125 in.	2.375 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-55X	0.125 in.	1.750 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-56X	0.125 in.	1.750 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-62X	0.188 in.	0.313 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-63X	0.188 in.	0.625 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-64X	0.188 in.	0.438 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-65X	0.188 in.	0.750 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-67X	0.188 in.	0.563 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-68X	0.188 in.	0.750 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-69X	0.188 in.	0.625 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-71X	0.188 in.	0.688 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-72X	0.188 in.	0.813 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-73X	0.188 in.	1.250 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-74X	0.188 in.	0.813 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-75X	0.188 in.	0.875 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-77X	0.188 in.	1.000 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-78X	0.188 in.	1.063 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-80X	0.188 in.	1.250 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-81X	0.188 in.	1.375 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-82X	0.188 in.	1.875 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-85X	0.188 in.	1.750 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-91X	0.250 in.	0.313 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-93X	0.250 in.	0.438 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-94X	0.250 in.	0.750 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-96X	0.250 in.	0.563 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-97X	0.250 in.	0.750 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-98X	0.250 in.	0.625 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-99X	0.250 in.	1.000 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-100X	0.250 in.	0.688 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-101X	0.250 in.	0.813 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-102X	0.250 in.	1.250 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-103X	0.250 in.	0.813 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-104X	0.250 in.	0.875 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-106X	0.250 in.	1.000 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-107X	0.250 in.	1.063 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-108X	0.250 in.	1.438 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-109X	0.250 in.	1.250 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-110X	0.250 in.	1.375 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-114X	0.250 in.	1.750 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-118X	0.063 in.	0.813 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-120X	0.063 in.	1.625 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-121X	0.063 in.	1.625 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-122X	0.125 in.	0.813 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-123X	0.125 in.	1.250 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-124X	0.125 in.	1.625 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-125X	0.125 in.	1.625 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-127X	0.188 in.	1.250 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-134X	0.063 in.	0.563 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-135X	0.063 in.	1.250 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-131X	0.250 in.	1.250 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange
MS35489-137X	0.125 in.	0.563 in.	Mil-Spec Rubber Grommet	High Temp / Low Temp	Silicone	50	Red or Orange

reset matrix

clear Part #	clear A - Inside Diameter (in.)	clear B - Groove Width (in.)	clear C - Groove Diameter (in.)	clear D - Outside Diameter (in.)	clear E - Thickness (in.)
MS35489-1X	0.125 \| 1/8 in.	0.063 \| 1/16 in.	0.250 \| 1/4 in.	0.344 \| 11/32 in.	0.188 \| 3/16 in.
MS35489-2X	0.125 \| 1/8 in.	0.063 \| 1/16 in.	0.563 \| 9/16 in.	0.758 \| 3/4 in.	0.188 \| 3/16 in.
MS35489-4X	0.188 \| 3/16 in.	0.063 \| 1/16 in.	0.313 \| 5/16 in.	0.438 \| 7/16 in.	0.188 \| 3/16 in.
MS35489-5X	0.188 \| 3/16 in.	0.063 \| 1/16 in.	0.625 \| 5/8 in.	0.875 \| 7/8 in.	0.188 \| 3/16 in.
MS35489-6X	0.250 \| 1/4 in.	0.063 \| 1/16 in.	0.438 \| 7/16 in.	0.625 \| 5/8 in.	0.188 \| 3/16 in.
MS35489-7X	0.250 \| 1/4 in.	0.063 \| 1/16 in.	0.750 \| 3/4 in.	1.000 \| 1 in.	0.250 \| 1/4 in.
MS35489-8X	0.250 \| 1/4 in.	0.063 \| 1/16 in.	1.000 \| 1 in.	1.250 \| 1 1/4 in.	0.250 \| 1/4 in.
MS35489-9X	0.313 \| 5/16 in.	0.063 \| 1/16 in.	0.563 \| 9/16 in.	0.813 \| 13/16 in.	0.313 \| 5/16 in.
MS35489-10X	0.313 \| 5/16 in.	0.063 \| 1/16 in.	0.750 \| 3/4 in.	1.000 \| 1 in.	0.313 \| 5/16 in.
MS35489-11X	0.375 \| 3/8 in.	0.063 \| 1/16 in.	0.625 \| 5/8 in.	0.875 \| 7/8 in.	0.313 \| 5/16 in.
MS35489-12X	0.813 \| 13/16 in.	0.063 \| 1/16 in.	1.000 \| 1 in.	1.250 \| 1 1/4 in.	0.250 \| 1/4 in.
MS35489-13X	0.438 \| 7/16 in.	0.063 \| 1/16 in.	0.688 \| 11/16 in.	0.938 \| 15/16 in.	0.313 \| 5/16 in.
MS35489-14X	0.500 \| 1/2 in.	0.063 \| 1/16 in.	0.813 \| 13/16 in.	1.063 \| 1 1/16 in.	0.313 \| 5/16 in.
MS35489-15X	0.500 \| 1/2 in.	0.063 \| 1/16 in.	1.250 \| 1 1/4 in.	1.500 \| 1 1/2 in.	0.250 \| 1/4 in.
MS35489-16X	0.563 \| 9/16 in.	0.063 \| 1/16 in.	0.813 \| 13/16 in.	1.063 \| 1 1/16 in.	0.313 \| 5/16 in.
MS35489-17X	0.625 \| 5/8 in.	0.063 \| 1/16 in.	0.875 \| 7/8 in.	1.125 \| 1 1/8 in.	0.313 \| 5/16 in.
MS35489-18X	0.625 \| 5/8 in.	0.063 \| 1/16 in.	1.250 \| 1 1/4 in.	1.500 \| 1 1/2 in.	0.250 \| 1/4 in.
MS35489-19X	0.688 \| 11/16 in.	0.063 \| 1/16 in.	1.000 \| 1 in.	1.313 \| 1 5/16 in.	0.375 \| 3/8 in.
MS35489-20X	0.750 \| 3/4 in.	0.063 \| 1/16 in.	1.063 \| 1 1/16 in.	1.375 \| 1 3/8 in.	0.375 \| 3/8 in.
MS35489-21X	0.750 \| 3/4 in.	0.063 \| 1/16 in.	1.438 \| 1 7/16 in.	1.813 \| 1 13/16 in.	0.375 \| 3/8 in.
MS35489-22X	0.875 \| 7/8 in.	0.063 \| 1/16 in.	1.250 \| 1 1/4 in.	1.625 \| 1 5/8 in.	0.438 \| 7/16 in.
MS35489-23X	1.000 \| 1 in.	0.063 \| 1/16 in.	1.375 \| 1 3/8 in.	1.750 \| 1 3/4 in.	0.438 \| 7/16 in.
MS35489-24X	1.000 \| 1 in.	0.063 \| 1/16 in.	1.875 \| 1 7/8 in.	2.250 \| 2 1/4 in.	0.438 \| 7/16 in.
MS35489-27X	1.500 \| 1 1/2 in.	0.063 \| 1/16 in.	1.750 \| 1 3/4 in.	2.125 \| 2 1/8 in.	0.438 \| 7/16 in.
MS35489-28X	1.500 \| 1 1/2 in.	0.063 \| 1/16 in.	2.750 \| 2 3/4 in.	3.250 \| 3 1/4 in.	0.438 \| 7/16 in.
MS35489-31X	0.125 \| 1/8 in.	0.125 \| 1/8 in.	0.563 \| 9/16 in.	0.750 \| 3/4 in.	0.250 \| 1/4 in.
MS35489-32X	0.125 \| 1/8 in.	0.125 \| 1/8 in.	1.000 \| 1 in.	1.250 \| 1 1/4 in.	0.313 \| 5/16 in.
MS35489-33X	0.188 \| 3/16 in.	0.125 \| 1/8 in.	0.313 \| 5/16 in.	0.438 \| 7/16 in.	0.250 \| 1/4 in.
MS35489-34X	0.188 \| 3/16 in.	0.125 \| 1/8 in.	0.625 \| 5/8 in.	0.875 \| 7/8 in.	0.250 \| 1/4 in.
MS35489-35X	0.250 \| 1/4 in.	0.125 \| 1/8 in.	0.438 \| 7/16 in.	0.625 \| 5/8 in.	0.250 \| 1/4 in.
MS35489-36X	0.250 \| 1/4 in.	0.125 \| 1/8 in.	0.750 \| 3/4 in.	1.000 \| 1 in.	0.313 \| 5/16 in.
MS35489-37X	0.250 \| 1/4 in.	0.125 \| 1/8 in.	1.000 \| 1 in.	1.250 \| 1 1/4 in.	0.313 \| 5/16 in.
MS35489-38X	0.313 \| 5/16 in.	0.125 \| 1/8 in.	0.563 \| 9/16 in.	0.813 \| 13/16 in.	0.375 \| 3/8 in.
MS35489-39X	0.313 \| 5/16 in.	0.125 \| 1/8 in.	0.750 \| 3/4 in.	1.000 \| 1 in.	0.375 \| 3/8 in.
MS35489-40X	0.375 \| 3/8 in.	0.125 \| 1/8 in.	0.625 \| 5/8 in.	0.875 \| 7/8 in.	0.375 \| 3/8 in.
MS35489-41X	0.375 \| 3/8 in.	0.125 \| 1/8 in.	1.000 \| 1 in.	1.250 \| 1 1/4 in.	0.313 \| 5/16 in.
MS35489-42X	0.438 \| 7/16 in.	0.125 \| 1/8 in.	0.688 \| 11/16 in.	0.938 \| 15/16 in.	0.375 \| 3/8 in.
MS35489-43X	0.500 \| 1/2 in.	0.125 \| 1/8 in.	0.813 \| 13/16 in.	1.063 \| 1 1/16 in.	0.375 \| 3/8 in.
MS35489-44X	0.500 \| 1/2 in.	0.125 \| 1/8 in.	1.250 \| 1 1/4 in.	1.500 \| 1 1/2 in.	0.313 \| 5/16 in.
MS35489-45X	0.563 \| 9/16 in.	0.125 \| 1/8 in.	0.813 \| 13/16 in.	1.063 \| 1 1/16 in.	0.375 \| 3/8 in.
MS35489-46X	0.625 \| 5/8 in.	0.125 \| 1/8 in.	0.875 \| 7/8 in.	1.125 \| 1 1/8 in.	0.375 \| 3/8 in.
MS35489-47X	0.625 \| 5/8 in.	0.125 \| 1/8 in.	1.250 \| 1 1/4 in.	1.500 \| 1 1/2 in.	0.313 \| 5/16 in.
MS35489-48X	0.688 \| 11/16 in.	0.125 \| 1/8 in.	1.000 \| 1 in.	1.313 \| 1 5/16 in.	0.438 \| 7/16 in.
MS35489-49X	0.750 \| 3/4 in.	0.125 \| 1/8 in.	1.063 \| 1 1/16 in.	1.375 \| 1 3/8 in.	0.438 \| 7/16 in.
MS35489-50X	0.750 \| 3/4 in.	0.125 \| 1/8 in.	1.438 \| 1 7/16 in.	1.813 \| 1 13/16 in.	0.438 \| 7/16 in.
MS35489-51X	0.875 \| 7/8 in.	0.125 \| 1/8 in.	1.250 \| 1 1/4 in.	1.625 \| 1 5/8 in.	0.500 \| 1/2 in.
MS35489-52X	1.000 \| 1 in.	0.125 \| 1/8 in.	1.375 \| 1 3/8 in.	1.750 \| 1 3/4 in.	0.500 \| 1/2 in.
MS35489-53X	1.000 \| 1 in.	0.125 \| 1/8 in.	1.875 \| 1 7/8 in.	2.250 \| 2 1/4 in.	0.500 \| 1/2 in.
MS35489-54X	1.250 \| 1 1/4 in.	0.125 \| 1/8 in.	2.375 \| 2 3/8 in.	2.750 \| 2 3/4 in.	0.438 \| 7/16 in.
MS35489-55X	1.500 \| 1 1/2 in.	0.125 \| 1/8 in.	1.750 \| 1 3/4 in.	2.125 \| 2 1/8 in.	0.438 \| 7/16 in.
MS35489-56X	1.500 \| 1 1/2 in.	0.125 \| 1/8 in.	1.750 \| 1 3/4 in.	2.125 \| 2 1/8 in.	0.500 \| 1/2 in.
MS35489-62X	0.188 \| 3/16 in.	0.188 \| 3/16 in.	0.313 \| 5/16 in.	0.438 \| 7/16 in.	0.313 \| 5/16 in.
MS35489-63X	0.188 \| 3/16 in.	0.188 \| 3/16 in.	0.625 \| 5/8 in.	0.875 \| 7/8 in.	0.625 \| 5/8 in.
MS35489-64X	0.250 \| 1/4 in.	0.188 \| 3/16 in.	0.438 \| 7/16 in.	0.625 \| 5/8 in.	0.313 \| 5/16 in.
MS35489-65X	0.250 \| 1/4 in.	0.188 \| 3/16 in.	0.750 \| 3/4 in.	1.000 \| 1 in.	0.375 \| 3/8 in.
MS35489-67X	0.313 \| 5/16 in.	0.188 \| 3/16 in.	0.563 \| 9/16 in.	0.813 \| 13/16 in.	0.438 \| 7/16 in.
MS35489-68X	0.313 \| 5/16 in.	0.188 \| 3/16 in.	0.750 \| 3/4 in.	1.000 \| 1 in.	0.438 \| 7/16 in.
MS35489-69X	0.375 \| 3/8 in.	0.188 \| 3/16 in.	0.625 \| 5/8 in.	0.875 \| 7/8 in.	0.438 \| 7/16 in.
MS35489-71X	0.438 \| 7/16 in.	0.188 \| 3/16 in.	0.688 \| 11/16 in.	0.938 \| 15/16 in.	0.438 \| 7/16 in.
MS35489-72X	0.500 \| 1/2 in.	0.188 \| 3/16 in.	0.813 \| 13/16 in.	1.063 \| 1 1/16 in.	0.438 \| 7/16 in.
MS35489-73X	0.500 \| 1/2 in.	0.188 \| 3/16 in.	1.250 \| 1 1/4 in.	1.500 \| 1 1/2 in.	0.375 \| 3/8 in.
MS35489-74X	0.563 \| 9/16 in.	0.188 \| 3/16 in.	0.813 \| 13/16 in.	1.063 \| 1 1/16 in.	0.438 \| 7/16 in.
MS35489-75X	0.625 \| 5/8 in.	0.188 \| 3/16 in.	0.875 \| 7/8 in.	1.125 \| 1 1/8 in.	0.438 \| 7/16 in.
MS35489-77X	0.688 \| 11/16 in.	0.188 \| 3/16 in.	1.000 \| 1 in.	1.313 \| 1 5/16 in.	0.500 \| 1/2 in.
MS35489-78X	0.750 \| 3/4 in.	0.188 \| 3/16 in.	1.063 \| 1 1/16 in.	1.375 \| 1 3/8 in.	0.500 \| 1/2 in.
MS35489-80X	0.875 \| 7/8 in.	0.188 \| 3/16 in.	1.250 \| 1 1/4 in.	1.625 \| 1 5/8 in.	0.563 \| 9/16 in.
MS35489-81X	1.000 \| 1 1/2 in.	0.188 \| 3/16 in.	1.375 \| 1 3/8 in.	1.750 \| 1 3/4 in.	0.563 \| 9/16 in.
MS35489-82X	1.000 \| 1 1/2 in.	0.188 \| 3/16 in.	1.875 \| 1 7/8 in.	2.250 \| 2 1/4 in.	0.563 \| 9/16 in.
MS35489-85X	1.500 \| 1 1/2 in.	0.188 \| 3/16 in.	1.750 \| 1 3/4 in.	2.125 \| 2 1/8 in.	0.563 \| 9/16 in.
MS35489-91X	0.188 \| 3/16 in.	0.250 \| 1/4 in.	0.313 \| 5/16 in.	0.438 \| 7/16 in.	0.375 \| 3/8 in.
MS35489-93X	0.250 \| 1/4 in.	0.250 \| 1/4 in.	0.438 \| 7/16 in.	0.625 \| 5/8 in.	0.375 \| 3/8 in.
MS35489-94X	0.250 \| 1/4 in.	0.250 \| 1/4 in.	0.750 \| 3/4 in.	1.000 \| 1 in.	0.438 \| 7/16 in.
MS35489-96X	0.313 \| 5/16 in.	0.250 \| 1/4 in.	0.563 \| 9/16 in.	0.813 \| 13/16 in.	0.500 \| 1/2 in.
MS35489-97X	0.313 \| 5/16 in.	0.250 \| 1/4 in.	0.750 \| 3/4 in.	1.000 \| 1 in.	0.500 \| 1/2 in.
MS35489-98X	0.375 \| 3/8 in.	0.250 \| 1/4 in.	0.625 \| 5/8 in.	0.875 \| 7/8 in.	0.500 \| 1/2 in.
MS35489-99X	0.375 \| 3/8 in.	0.250 \| 1/4 in.	1.000 \| 1 in.	1.250 \| 1 1/4 in.	0.438 \| 7/16 in.
MS35489-100X	0.438 \| 7/16 in.	0.250 \| 1/4 in.	0.688 \| 11/16 in.	0.938 \| 15/16 in.	0.500 \| 1/2 in.
MS35489-101X	0.500 \| 1/2 in.	0.250 \| 1/4 in.	0.813 \| 13/16 in.	1.063 \| 1 1/16 in.	0.500 \| 1/2 in.
MS35489-102X	0.500 \| 1/2 in.	0.250 \| 1/4 in.	1.250 \| 1 1/4 in.	1.500 \| 1 1/2 in.	0.500 \| 1/2 in.
MS35489-103X	0.563 \| 9/16 in.	0.250 \| 1/4 in.	0.813 \| 13/16 in.	1.063 \| 1 1/16 in.	0.500 \| 1/2 in.
MS35489-104X	0.625 \| 5/8 in.	0.250 \| 1/4 in.	0.875 \| 7/8 in.	1.125 \| 1 1/8 in.	0.500 \| 1/2 in.
MS35489-106X	0.688 \| 11/16 in.	0.250 \| 1/4 in.	1.000 \| 1 in.	1.313 \| 1 5/16 in.	0.563 \| 9/16 in.
MS35489-107X	0.750 \| 3/4 in.	0.250 \| 1/4 in.	1.063 \| 1 1/16 in.	1.375 \| 1 3/8 in.	0.563 \| 9/16 in.
MS35489-108X	0.750 \| 3/4 in.	0.250 \| 1/4 in.	1.438 \| 1 7/16 in.	1.813 \| 1 13/16 in.	0.563 \| 9/16 in.
MS35489-109X	0.875 \| 7/8 in.	0.250 \| 1/4 in.	1.250 \| 1 1/4 in.	1.625 \| 1 5/8 in.	0.625 \| 5/8 in.
MS35489-110X	1.000 \| 1 in.	0.250 \| 1/4 in.	1.375 \| 1 3/8 in.	1.750 \| 1 3/4 in.	0.625 \| 5/8 in.
MS35489-114X	1.500 \| 1 1/2 in.	0.250 \| 1/4 in.	1.750 \| 1 3/4 in.	2.125 \| 2 1/8 in.	0.625 \| 5/8 in.
MS35489-118X	0.313 \| 5/16 in.	0.063 \| 1/16 in.	0.813 \| 13/16 in.	1.063 \| 1 1/16 in.	0.313 \| 5/16 in.
MS35489-120X	0.750 \| 3/4 in.	0.063 \| 1/16 in.	1.625 \| 1 5/8 in.	2.000 \| 2 in.	0.375 \| 3/8 in.
MS35489-121X	0.875 \| 7/8 in.	0.063 \| 1/16 in.	1.625 \| 1 5/8 in.	2.000 \| 2 in.	0.438 \| 7/16 in.
MS35489-122X	0.313 \| 5/16 in.	0.125 \| 1/8 in.	0.813 \| 13/16 in.	1.063 \| 1 1/16 in.	0.375 \| 3/8 in.
MS35489-123X	0.750 \| 3/4 in.	0.125 \| 1/8 in.	1.250 \| 1 1/4 in.	1.625 \| 1 5/8 in.	0.313 \| 5/16 in.
MS35489-124X	0.750 \| 3/4 in.	0.125 \| 1/8 in.	1.625 \| 1 5/8 in.	2.000 \| 2 in.	0.438 \| 7/16 in.
MS35489-125X	0.875 \| 7/8 in.	0.125 \| 1/8 in.	1.625 \| 1 5/8 in.	2.000 \| 2 in.	0.500 \| 1/2 in.
MS35489-127X	0.750 \| 3/4 in.	0.188 \| 3/16 in.	1.250 \| 1 1/4 in.	1.625 \| 1 5/8 in.	0.375 \| 3/8 in.
MS35489-134X	0.188 \| 3/16 in.	0.063 \| 1/16 in.	0.563 \| 9/16 in.	0.750 \| 3/4 in.	0.188 \| 3/16 in.
MS35489-135X	0.750 \| 3/4 in.	0.063 \| 1/16 in.	1.250 \| 1 1/4 in.	1.625 \| 1 5/8 in.	0.250 \| 1/4 in.
MS35489-131X	0.750 \| 3/4 in.	0.250 \| 1/4 in.	1.250 \| 1 1/4 in.	1.625 \| 1 5/8 in.	0.438 \| 7/16 in.
MS35489-137X	0.188 \| 3/16 in.	0.125 \| 1/8 in.	0.563 \| 9/16 in.	0.750 \| 3/4 in.	0.563 \| 9/16 in.

reset matrix

clear Part #	clear A - Inside Diameter (mm)	clear B - Groove Width (mm)	clear C - Groove Diameter (mm)	clear D - Outside Diameter (mm)	clear E - Thickness (mm)
MS35489-1X	3.2 mm	1.6 mm	6.4 mm	8.7 mm	4.8 mm
MS35489-2X	3.2 mm	1.6 mm	14.3 mm	19.1 mm	4.8 mm
MS35489-4X	4.8 mm	1.6 mm	7.9 mm	11.1 mm	4.8 mm
MS35489-5X	4.8 mm	1.6 mm	15.9 mm	22.2 mm	4.8 mm
MS35489-6X	6.4 mm	1.6 mm	11.1 mm	15.9 mm	4.8 mm
MS35489-7X	6.4 mm	1.6 mm	19.1 mm	25.4 mm	6.4 mm
MS35489-8X	6.4 mm	1.6 mm	25.4 mm	31.8 mm	6.4 mm
MS35489-9X	7.9 mm	1.6 mm	14.3 mm	20.6 mm	7.9 mm
MS35489-10X	7.9 mm	1.6 mm	19.1 mm	25.4 mm	7.9 mm
MS35489-11X	9.5 mm	1.6 mm	15.9 mm	22.2 mm	7.9 mm
MS35489-12X	20.6 mm	27.0 mm	25.4 mm	31.8 mm	6.4 mm
MS35489-13X	11.1 mm	1.6 mm	17.5 mm	23.8 mm	7.9 mm
MS35489-14X	12.7 mm	1.6 mm	20.6 mm	27.0 mm	7.9 mm
MS35489-15X	12.7 mm	1.6 mm	31.8 mm	38.1 mm	6.4 mm
MS35489-16X	14.3 mm	1.6 mm	20.6 mm	27.0 mm	7.9 mm
MS35489-17X	15.9 mm	1.6 mm	22.2 mm	28.6 mm	7.9 mm
MS35489-18X	15.9 mm	1.6 mm	31.8 mm	38.1 mm	6.4 mm
MS35489-19X	17.5 mm	1.6 mm	25.4 mm	33.3 mm	9.5 mm
MS35489-20X	19.1 mm	1.6 mm	27.0 mm	34.9 mm	9.5 mm
MS35489-21X	19.1 mm	1.6 mm	36.5 mm	46.0 mm	9.5 mm
MS35489-22X	22.2 mm	1.6 mm	31.8 mm	41.3 mm	11.1 mm
MS35489-23X	25.4 mm	1.6 mm	34.9 mm	44.5 mm	11.1 mm
MS35489-24X	25.4 mm	1.6 mm	47.6 mm	57.2 mm	11.1 mm
MS35489-27X	38.1 mm	1.6 mm	44.5 mm	54.0 mm	11.1 mm
MS35489-28X	38.1 mm	1.6 mm	69.9 mm	82.6 mm	11.1 mm
MS35489-31X	3.2 mm	0.1 mm	14.3 mm	19.1 mm	6.4 mm
MS35489-32X	3.2 mm	3.2 mm	25.4 mm	31.8 mm	7.9 mm
MS35489-33X	4.8 mm	0.1 mm	7.9 mm	11.1 mm	6.4 mm
MS35489-34X	4.8 mm	3.2 mm	15.9 mm	22.2 mm	6.4 mm
MS35489-35X	6.4 mm	0.1 mm	11.1 mm	15.9 mm	6.4 mm
MS35489-36X	6.4 mm	3.2 mm	19.1 mm	25.4 mm	7.9 mm
MS35489-37X	6.4 mm	0.1 mm	25.4 mm	31.8 mm	7.9 mm
MS35489-38X	7.9 mm	0.1 mm	14.3 mm	20.6 mm	9.5 mm
MS35489-39X	7.9 mm	0.1 mm	19.1 mm	25.4 mm	9.5 mm
MS35489-40X	9.5 mm	0.1 mm	15.9 mm	22.2 mm	9.5 mm
MS35489-41X	9.5 mm	0.1 mm	25.4 mm	31.8 mm	7.9 mm
MS35489-42X	11.1 mm	0.1 mm	17.5 mm	23.8 mm	9.5 mm
MS35489-43X	12.7 mm	0.1 mm	20.6 mm	27.0 mm	9.5 mm
MS35489-44X	12.7 mm	0.1 mm	31.8 mm	38.1 mm	7.9 mm
MS35489-45X	14.3 mm	3.2 mm	20.6 mm	27.0 mm	9.5 mm
MS35489-46X	15.9 mm	3.2 mm	22.2 mm	28.6 mm	9.5 mm
MS35489-47X	15.9 mm	3.2 mm	31.8 mm	38.1 mm	7.9 mm
MS35489-48X	17.5 mm	3.2 mm	25.4 mm	33.3 mm	11.1 mm
MS35489-49X	19.1 mm	3.2 mm	27.0 mm	34.9 mm	11.1 mm
MS35489-50X	19.1 mm	3.2 mm	36.5 mm	46.0 mm	11.1 mm
MS35489-51X	22.2 mm	3.2 mm	31.8 mm	41.3 mm	12.7 mm
MS35489-52X	25.4 mm	3.2 mm	34.9 mm	44.5 mm	12.7 mm
MS35489-53X	25.4 mm	3.2 mm	47.6 mm	57.2 mm	12.7 mm
MS35489-54X	31.8 mm	3.2 mm	60.3 mm	69.9 mm	11.1 mm
MS35489-55X	38.1 mm	3.2 mm	44.5 mm	54.0 mm	11.1 mm
MS35489-56X	38.1 mm	3.2 mm	44.5 mm	54.0 mm	12.7 mm
MS35489-62X	4.8 mm	4.8 mm	7.9 mm	11.1 mm	7.9 mm
MS35489-63X	4.8 mm	4.8 mm	15.9 mm	22.2 mm	15.9 mm
MS35489-64X	6.4 mm	4.8 mm	11.1 mm	15.9 mm	7.9 mm
MS35489-65X	6.4 mm	4.8 mm	19.1 mm	25.4 mm	9.5 mm
MS35489-67X	7.9 mm	4.8 mm	14.3 mm	20.6 mm	11.1 mm
MS35489-68X	7.9 mm	4.8 mm	19.1 mm	25.4 mm	11.1 mm
MS35489-69X	9.5 mm	4.8 mm	15.9 mm	22.2 mm	11.1 mm
MS35489-71X	11.1 mm	4.8 mm	17.5 mm	23.8 mm	11.1 mm
MS35489-72X	12.7 mm	4.8 mm	20.6 mm	27.0 mm	11.1 mm
MS35489-73X	12.7 mm	4.8 mm	31.8 mm	38.1 mm	9.5 mm
MS35489-74X	14.3 mm	4.8 mm	20.6 mm	27.0 mm	11.1 mm
MS35489-75X	15.9 mm	4.8 mm	22.2 mm	28.6 mm	11.1 mm
MS35489-77X	17.5 mm	4.8 mm	25.4 mm	33.3 mm	12.7 mm
MS35489-78X	19.1 mm	4.8 mm	27.0 mm	34.9 mm	12.7 mm
MS35489-80X	22.2 mm	4.8 mm	31.8 mm	41.3 mm	14.3 mm
MS35489-81X	25.4 mm	4.8 mm	34.9 mm	44.5 mm	14.3 mm
MS35489-82X	25.4 mm	4.8 mm	47.6 mm	57.2 mm	14.3 mm
MS35489-85X	38.1 mm	4.8 mm	44.5 mm	54.0 mm	14.3 mm
MS35489-91X	4.8 mm	6.4 mm	7.9 mm	11.1 mm	9.5 mm
MS35489-93X	6.4 mm	6.4 mm	11.1 mm	15.9 mm	9.5 mm
MS35489-94X	6.4 mm	6.4 mm	19.1 mm	25.4 mm	11.1 mm
MS35489-96X	7.9 mm	6.4 mm	14.3 mm	20.6 mm	12.7 mm
MS35489-97X	7.9 mm	6.4 mm	19.1 mm	25.4 mm	12.7 mm
MS35489-98X	9.5 mm	6.4 mm	15.9 mm	22.2 mm	12.7 mm
MS35489-99X	9.5 mm	6.4 mm	25.4 mm	31.8 mm	11.1 mm
MS35489-100X	11.1 mm	6.4 mm	17.5 mm	23.8 mm	12.7 mm
MS35489-101X	12.7 mm	6.4 mm	20.6 mm	27.0 mm	12.7 mm
MS35489-102X	12.7 mm	6.4 mm	31.8 mm	38.1 mm	12.7 mm
MS35489-103X	14.3 mm	6.4 mm	20.6 mm	27.0 mm	12.7 mm
MS35489-104X	15.9 mm	6.4 mm	22.2 mm	28.6 mm	12.7 mm
MS35489-106X	17.5 mm	6.4 mm	25.4 mm	33.3 mm	14.3 mm
MS35489-107X	19.1 mm	6.4 mm	27.0 mm	34.9 mm	14.3 mm
MS35489-108X	19.1 mm	6.4 mm	36.5 mm	46.0 mm	14.3 mm
MS35489-109X	22.2 mm	6.4 mm	31.8 mm	41.3 mm	15.9 mm
MS35489-110X	25.4 mm	6.4 mm	34.9 mm	44.5 mm	15.9 mm
MS35489-114X	38.1 mm	6.4 mm	44.5 mm	54.0 mm	15.9 mm
MS35489-118X	7.9 mm	1.6 mm	20.6 mm	27.0 mm	7.9 mm
MS35489-120X	19.1 mm	1.6 mm	41.3 mm	50.8 mm	9.5 mm
MS35489-121X	22.2 mm	1.6 mm	41.3 mm	50.8 mm	11.1 mm
MS35489-122X	7.9 mm	3.2 mm	20.6 mm	27.0 mm	9.5 mm
MS35489-123X	19.1 mm	3.2 mm	31.8 mm	41.3 mm	7.9 mm
MS35489-124X	19.1 mm	3.2 mm	41.3 mm	50.8 mm	11.1 mm
MS35489-125X	22.2 mm	3.2 mm	41.3 mm	50.8 mm	12.7 mm
MS35489-127X	19.1 mm	4.8 mm	31.8 mm	41.3 mm	9.5 mm
MS35489-134X	4.8 mm	1.6 mm	14.3 mm	19.1 mm	4.8 mm
MS35489-135X	19.1 mm	1.6 mm	31.8 mm	41.3 mm	6.4 mm
MS35489-131X	19.1 mm	6.4 mm	31.8 mm	41.3 mm	11.1 mm
MS35489-137X	4.8 mm	3.2 mm	14.3 mm	19.1 mm	14.3 mm

clear Part #	clear A - Inside Diameter (in.)	clear B - Groove Width (in.)	clear C - Groove Diameter (in.)	clear D - Outside Diameter (in.)	clear E - Thickness (in.)
MS35489-1X	0.125 \| 1/8 in.	0.063 \| 1/16 in.	0.250 \| 1/4 in.	0.344 \| 11/32 in.	0.188 \| 3/16 in.
MS35489-2X	0.125 \| 1/8 in.	0.063 \| 1/16 in.	0.563 \| 9/16 in.	0.758 \| 3/4 in.	0.188 \| 3/16 in.
MS35489-4X	0.188 \| 3/16 in.	0.063 \| 1/16 in.	0.313 \| 5/16 in.	0.438 \| 7/16 in.	0.188 \| 3/16 in.
MS35489-5X	0.188 \| 3/16 in.	0.063 \| 1/16 in.	0.625 \| 5/8 in.	0.875 \| 7/8 in.	0.188 \| 3/16 in.
MS35489-6X	0.250 \| 1/4 in.	0.063 \| 1/16 in.	0.438 \| 7/16 in.	0.625 \| 5/8 in.	0.188 \| 3/16 in.
MS35489-7X	0.250 \| 1/4 in.	0.063 \| 1/16 in.	0.750 \| 3/4 in.	1.000 \| 1 in.	0.250 \| 1/4 in.
MS35489-8X	0.250 \| 1/4 in.	0.063 \| 1/16 in.	1.000 \| 1 in.	1.250 \| 1 1/4 in.	0.250 \| 1/4 in.
MS35489-9X	0.313 \| 5/16 in.	0.063 \| 1/16 in.	0.563 \| 9/16 in.	0.813 \| 13/16 in.	0.313 \| 5/16 in.
MS35489-10X	0.313 \| 5/16 in.	0.063 \| 1/16 in.	0.750 \| 3/4 in.	1.000 \| 1 in.	0.313 \| 5/16 in.
MS35489-11X	0.375 \| 3/8 in.	0.063 \| 1/16 in.	0.625 \| 5/8 in.	0.875 \| 7/8 in.	0.313 \| 5/16 in.
MS35489-12X	0.813 \| 13/16 in.	0.063 \| 1/16 in.	1.000 \| 1 in.	1.250 \| 1 1/4 in.	0.250 \| 1/4 in.
MS35489-13X	0.438 \| 7/16 in.	0.063 \| 1/16 in.	0.688 \| 11/16 in.	0.938 \| 15/16 in.	0.313 \| 5/16 in.
MS35489-14X	0.500 \| 1/2 in.	0.063 \| 1/16 in.	0.813 \| 13/16 in.	1.063 \| 1 1/16 in.	0.313 \| 5/16 in.
MS35489-15X	0.500 \| 1/2 in.	0.063 \| 1/16 in.	1.250 \| 1 1/4 in.	1.500 \| 1 1/2 in.	0.250 \| 1/4 in.
MS35489-16X	0.563 \| 9/16 in.	0.063 \| 1/16 in.	0.813 \| 13/16 in.	1.063 \| 1 1/16 in.	0.313 \| 5/16 in.
MS35489-17X	0.625 \| 5/8 in.	0.063 \| 1/16 in.	0.875 \| 7/8 in.	1.125 \| 1 1/8 in.	0.313 \| 5/16 in.
MS35489-18X	0.625 \| 5/8 in.	0.063 \| 1/16 in.	1.250 \| 1 1/4 in.	1.500 \| 1 1/2 in.	0.250 \| 1/4 in.
MS35489-19X	0.688 \| 11/16 in.	0.063 \| 1/16 in.	1.000 \| 1 in.	1.313 \| 1 5/16 in.	0.375 \| 3/8 in.
MS35489-20X	0.750 \| 3/4 in.	0.063 \| 1/16 in.	1.063 \| 1 1/16 in.	1.375 \| 1 3/8 in.	0.375 \| 3/8 in.
MS35489-21X	0.750 \| 3/4 in.	0.063 \| 1/16 in.	1.438 \| 1 7/16 in.	1.813 \| 1 13/16 in.	0.375 \| 3/8 in.
MS35489-22X	0.875 \| 7/8 in.	0.063 \| 1/16 in.	1.250 \| 1 1/4 in.	1.625 \| 1 5/8 in.	0.438 \| 7/16 in.
MS35489-23X	1.000 \| 1 in.	0.063 \| 1/16 in.	1.375 \| 1 3/8 in.	1.750 \| 1 3/4 in.	0.438 \| 7/16 in.
MS35489-24X	1.000 \| 1 in.	0.063 \| 1/16 in.	1.875 \| 1 7/8 in.	2.250 \| 2 1/4 in.	0.438 \| 7/16 in.
MS35489-27X	1.500 \| 1 1/2 in.	0.063 \| 1/16 in.	1.750 \| 1 3/4 in.	2.125 \| 2 1/8 in.	0.438 \| 7/16 in.
MS35489-28X	1.500 \| 1 1/2 in.	0.063 \| 1/16 in.	2.750 \| 2 3/4 in.	3.250 \| 3 1/4 in.	0.438 \| 7/16 in.
MS35489-31X	0.125 \| 1/8 in.	0.125 \| 1/8 in.	0.563 \| 9/16 in.	0.750 \| 3/4 in.	0.250 \| 1/4 in.
MS35489-32X	0.125 \| 1/8 in.	0.125 \| 1/8 in.	1.000 \| 1 in.	1.250 \| 1 1/4 in.	0.313 \| 5/16 in.
MS35489-33X	0.188 \| 3/16 in.	0.125 \| 1/8 in.	0.313 \| 5/16 in.	0.438 \| 7/16 in.	0.250 \| 1/4 in.
MS35489-34X	0.188 \| 3/16 in.	0.125 \| 1/8 in.	0.625 \| 5/8 in.	0.875 \| 7/8 in.	0.250 \| 1/4 in.
MS35489-35X	0.250 \| 1/4 in.	0.125 \| 1/8 in.	0.438 \| 7/16 in.	0.625 \| 5/8 in.	0.250 \| 1/4 in.
MS35489-36X	0.250 \| 1/4 in.	0.125 \| 1/8 in.	0.750 \| 3/4 in.	1.000 \| 1 in.	0.313 \| 5/16 in.
MS35489-37X	0.250 \| 1/4 in.	0.125 \| 1/8 in.	1.000 \| 1 in.	1.250 \| 1 1/4 in.	0.313 \| 5/16 in.
MS35489-38X	0.313 \| 5/16 in.	0.125 \| 1/8 in.	0.563 \| 9/16 in.	0.813 \| 13/16 in.	0.375 \| 3/8 in.
MS35489-39X	0.313 \| 5/16 in.	0.125 \| 1/8 in.	0.750 \| 3/4 in.	1.000 \| 1 in.	0.375 \| 3/8 in.
MS35489-40X	0.375 \| 3/8 in.	0.125 \| 1/8 in.	0.625 \| 5/8 in.	0.875 \| 7/8 in.	0.375 \| 3/8 in.
MS35489-41X	0.375 \| 3/8 in.	0.125 \| 1/8 in.	1.000 \| 1 in.	1.250 \| 1 1/4 in.	0.313 \| 5/16 in.
MS35489-42X	0.438 \| 7/16 in.	0.125 \| 1/8 in.	0.688 \| 11/16 in.	0.938 \| 15/16 in.	0.375 \| 3/8 in.
MS35489-43X	0.500 \| 1/2 in.	0.125 \| 1/8 in.	0.813 \| 13/16 in.	1.063 \| 1 1/16 in.	0.375 \| 3/8 in.
MS35489-44X	0.500 \| 1/2 in.	0.125 \| 1/8 in.	1.250 \| 1 1/4 in.	1.500 \| 1 1/2 in.	0.313 \| 5/16 in.
MS35489-45X	0.563 \| 9/16 in.	0.125 \| 1/8 in.	0.813 \| 13/16 in.	1.063 \| 1 1/16 in.	0.375 \| 3/8 in.
MS35489-46X	0.625 \| 5/8 in.	0.125 \| 1/8 in.	0.875 \| 7/8 in.	1.125 \| 1 1/8 in.	0.375 \| 3/8 in.
MS35489-47X	0.625 \| 5/8 in.	0.125 \| 1/8 in.	1.250 \| 1 1/4 in.	1.500 \| 1 1/2 in.	0.313 \| 5/16 in.
MS35489-48X	0.688 \| 11/16 in.	0.125 \| 1/8 in.	1.000 \| 1 in.	1.313 \| 1 5/16 in.	0.438 \| 7/16 in.
MS35489-49X	0.750 \| 3/4 in.	0.125 \| 1/8 in.	1.063 \| 1 1/16 in.	1.375 \| 1 3/8 in.	0.438 \| 7/16 in.
MS35489-50X	0.750 \| 3/4 in.	0.125 \| 1/8 in.	1.438 \| 1 7/16 in.	1.813 \| 1 13/16 in.	0.438 \| 7/16 in.
MS35489-51X	0.875 \| 7/8 in.	0.125 \| 1/8 in.	1.250 \| 1 1/4 in.	1.625 \| 1 5/8 in.	0.500 \| 1/2 in.
MS35489-52X	1.000 \| 1 in.	0.125 \| 1/8 in.	1.375 \| 1 3/8 in.	1.750 \| 1 3/4 in.	0.500 \| 1/2 in.
MS35489-53X	1.000 \| 1 in.	0.125 \| 1/8 in.	1.875 \| 1 7/8 in.	2.250 \| 2 1/4 in.	0.500 \| 1/2 in.
MS35489-54X	1.250 \| 1 1/4 in.	0.125 \| 1/8 in.	2.375 \| 2 3/8 in.	2.750 \| 2 3/4 in.	0.438 \| 7/16 in.
MS35489-55X	1.500 \| 1 1/2 in.	0.125 \| 1/8 in.	1.750 \| 1 3/4 in.	2.125 \| 2 1/8 in.	0.438 \| 7/16 in.
MS35489-56X	1.500 \| 1 1/2 in.	0.125 \| 1/8 in.	1.750 \| 1 3/4 in.	2.125 \| 2 1/8 in.	0.500 \| 1/2 in.
MS35489-62X	0.188 \| 3/16 in.	0.188 \| 3/16 in.	0.313 \| 5/16 in.	0.438 \| 7/16 in.	0.313 \| 5/16 in.
MS35489-63X	0.188 \| 3/16 in.	0.188 \| 3/16 in.	0.625 \| 5/8 in.	0.875 \| 7/8 in.	0.625 \| 5/8 in.
MS35489-64X	0.250 \| 1/4 in.	0.188 \| 3/16 in.	0.438 \| 7/16 in.	0.625 \| 5/8 in.	0.313 \| 5/16 in.
MS35489-65X	0.250 \| 1/4 in.	0.188 \| 3/16 in.	0.750 \| 3/4 in.	1.000 \| 1 in.	0.375 \| 3/8 in.
MS35489-67X	0.313 \| 5/16 in.	0.188 \| 3/16 in.	0.563 \| 9/16 in.	0.813 \| 13/16 in.	0.438 \| 7/16 in.
MS35489-68X	0.313 \| 5/16 in.	0.188 \| 3/16 in.	0.750 \| 3/4 in.	1.000 \| 1 in.	0.438 \| 7/16 in.
MS35489-69X	0.375 \| 3/8 in.	0.188 \| 3/16 in.	0.625 \| 5/8 in.	0.875 \| 7/8 in.	0.438 \| 7/16 in.
MS35489-71X	0.438 \| 7/16 in.	0.188 \| 3/16 in.	0.688 \| 11/16 in.	0.938 \| 15/16 in.	0.438 \| 7/16 in.
MS35489-72X	0.500 \| 1/2 in.	0.188 \| 3/16 in.	0.813 \| 13/16 in.	1.063 \| 1 1/16 in.	0.438 \| 7/16 in.
MS35489-73X	0.500 \| 1/2 in.	0.188 \| 3/16 in.	1.250 \| 1 1/4 in.	1.500 \| 1 1/2 in.	0.375 \| 3/8 in.
MS35489-74X	0.563 \| 9/16 in.	0.188 \| 3/16 in.	0.813 \| 13/16 in.	1.063 \| 1 1/16 in.	0.438 \| 7/16 in.
MS35489-75X	0.625 \| 5/8 in.	0.188 \| 3/16 in.	0.875 \| 7/8 in.	1.125 \| 1 1/8 in.	0.438 \| 7/16 in.
MS35489-77X	0.688 \| 11/16 in.	0.188 \| 3/16 in.	1.000 \| 1 in.	1.313 \| 1 5/16 in.	0.500 \| 1/2 in.
MS35489-78X	0.750 \| 3/4 in.	0.188 \| 3/16 in.	1.063 \| 1 1/16 in.	1.375 \| 1 3/8 in.	0.500 \| 1/2 in.
MS35489-80X	0.875 \| 7/8 in.	0.188 \| 3/16 in.	1.250 \| 1 1/4 in.	1.625 \| 1 5/8 in.	0.563 \| 9/16 in.
MS35489-81X	1.000 \| 1 1/2 in.	0.188 \| 3/16 in.	1.375 \| 1 3/8 in.	1.750 \| 1 3/4 in.	0.563 \| 9/16 in.
MS35489-82X	1.000 \| 1 1/2 in.	0.188 \| 3/16 in.	1.875 \| 1 7/8 in.	2.250 \| 2 1/4 in.	0.563 \| 9/16 in.
MS35489-85X	1.500 \| 1 1/2 in.	0.188 \| 3/16 in.	1.750 \| 1 3/4 in.	2.125 \| 2 1/8 in.	0.563 \| 9/16 in.
MS35489-91X	0.188 \| 3/16 in.	0.250 \| 1/4 in.	0.313 \| 5/16 in.	0.438 \| 7/16 in.	0.375 \| 3/8 in.
MS35489-93X	0.250 \| 1/4 in.	0.250 \| 1/4 in.	0.438 \| 7/16 in.	0.625 \| 5/8 in.	0.375 \| 3/8 in.
MS35489-94X	0.250 \| 1/4 in.	0.250 \| 1/4 in.	0.750 \| 3/4 in.	1.000 \| 1 in.	0.438 \| 7/16 in.
MS35489-96X	0.313 \| 5/16 in.	0.250 \| 1/4 in.	0.563 \| 9/16 in.	0.813 \| 13/16 in.	0.500 \| 1/2 in.
MS35489-97X	0.313 \| 5/16 in.	0.250 \| 1/4 in.	0.750 \| 3/4 in.	1.000 \| 1 in.	0.500 \| 1/2 in.
MS35489-98X	0.375 \| 3/8 in.	0.250 \| 1/4 in.	0.625 \| 5/8 in.	0.875 \| 7/8 in.	0.500 \| 1/2 in.
MS35489-99X	0.375 \| 3/8 in.	0.250 \| 1/4 in.	1.000 \| 1 in.	1.250 \| 1 1/4 in.	0.438 \| 7/16 in.
MS35489-100X	0.438 \| 7/16 in.	0.250 \| 1/4 in.	0.688 \| 11/16 in.	0.938 \| 15/16 in.	0.500 \| 1/2 in.
MS35489-101X	0.500 \| 1/2 in.	0.250 \| 1/4 in.	0.813 \| 13/16 in.	1.063 \| 1 1/16 in.	0.500 \| 1/2 in.
MS35489-102X	0.500 \| 1/2 in.	0.250 \| 1/4 in.	1.250 \| 1 1/4 in.	1.500 \| 1 1/2 in.	0.500 \| 1/2 in.
MS35489-103X	0.563 \| 9/16 in.	0.250 \| 1/4 in.	0.813 \| 13/16 in.	1.063 \| 1 1/16 in.	0.500 \| 1/2 in.
MS35489-104X	0.625 \| 5/8 in.	0.250 \| 1/4 in.	0.875 \| 7/8 in.	1.125 \| 1 1/8 in.	0.500 \| 1/2 in.
MS35489-106X	0.688 \| 11/16 in.	0.250 \| 1/4 in.	1.000 \| 1 in.	1.313 \| 1 5/16 in.	0.563 \| 9/16 in.
MS35489-107X	0.750 \| 3/4 in.	0.250 \| 1/4 in.	1.063 \| 1 1/16 in.	1.375 \| 1 3/8 in.	0.563 \| 9/16 in.
MS35489-108X	0.750 \| 3/4 in.	0.250 \| 1/4 in.	1.438 \| 1 7/16 in.	1.813 \| 1 13/16 in.	0.563 \| 9/16 in.
MS35489-109X	0.875 \| 7/8 in.	0.250 \| 1/4 in.	1.250 \| 1 1/4 in.	1.625 \| 1 5/8 in.	0.625 \| 5/8 in.
MS35489-110X	1.000 \| 1 in.	0.250 \| 1/4 in.	1.375 \| 1 3/8 in.	1.750 \| 1 3/4 in.	0.625 \| 5/8 in.
MS35489-114X	1.500 \| 1 1/2 in.	0.250 \| 1/4 in.	1.750 \| 1 3/4 in.	2.125 \| 2 1/8 in.	0.625 \| 5/8 in.
MS35489-118X	0.313 \| 5/16 in.	0.063 \| 1/16 in.	0.813 \| 13/16 in.	1.063 \| 1 1/16 in.	0.313 \| 5/16 in.
MS35489-120X	0.750 \| 3/4 in.	0.063 \| 1/16 in.	1.625 \| 1 5/8 in.	2.000 \| 2 in.	0.375 \| 3/8 in.
MS35489-121X	0.875 \| 7/8 in.	0.063 \| 1/16 in.	1.625 \| 1 5/8 in.	2.000 \| 2 in.	0.438 \| 7/16 in.
MS35489-122X	0.313 \| 5/16 in.	0.125 \| 1/8 in.	0.813 \| 13/16 in.	1.063 \| 1 1/16 in.	0.375 \| 3/8 in.
MS35489-123X	0.750 \| 3/4 in.	0.125 \| 1/8 in.	1.250 \| 1 1/4 in.	1.625 \| 1 5/8 in.	0.313 \| 5/16 in.
MS35489-124X	0.750 \| 3/4 in.	0.125 \| 1/8 in.	1.625 \| 1 5/8 in.	2.000 \| 2 in.	0.438 \| 7/16 in.
MS35489-125X	0.875 \| 7/8 in.	0.125 \| 1/8 in.	1.625 \| 1 5/8 in.	2.000 \| 2 in.	0.500 \| 1/2 in.
MS35489-127X	0.750 \| 3/4 in.	0.188 \| 3/16 in.	1.250 \| 1 1/4 in.	1.625 \| 1 5/8 in.	0.375 \| 3/8 in.
MS35489-134X	0.188 \| 3/16 in.	0.063 \| 1/16 in.	0.563 \| 9/16 in.	0.750 \| 3/4 in.	0.188 \| 3/16 in.
MS35489-135X	0.750 \| 3/4 in.	0.063 \| 1/16 in.	1.250 \| 1 1/4 in.	1.625 \| 1 5/8 in.	0.250 \| 1/4 in.
MS35489-131X	0.750 \| 3/4 in.	0.250 \| 1/4 in.	1.250 \| 1 1/4 in.	1.625 \| 1 5/8 in.	0.438 \| 7/16 in.
MS35489-137X	0.188 \| 3/16 in.	0.125 \| 1/8 in.	0.563 \| 9/16 in.	0.750 \| 3/4 in.	0.563 \| 9/16 in.

MS35489 X Mil-Spec Silicone Rubber Grommet | High Temp / Low Temp Military Grommets

REQUEST A QUOTE - MS35489 X Mil-Spec Silicone Rubber Grommet | High Temp / Low Temp Military Grommets

Thank you...for putting DeltaFlex to work for you.

Quick Quote

CUSTOMER SUPPORT QUESTION - MS35489 X Mil-Spec Silicone Rubber Grommet | High Temp / Low Temp Military Grommets

Thank you...for putting DeltaFlex to work for you.

Ask A Question

ENGINEERING ASSISTANCE - MS35489 X Mil-Spec Silicone Rubber Grommet | High Temp / Low Temp Military Grommets

Engineering Support

Ready to learn how our

Rubber Parts & Services

can help your business?

PRODUCTS

PRODUCTS (cont.)

PRODUCTS (cont.)

RubberPartsCatalog.com
