LORD SSB - Safetied Rubber Sandwich Mounts (Kits)
Load Range: 185 lbs - 1,125 lbs (825 - 5005 N)
"Applications requiring a significant difference in stiffness between vertical and horizontal direction of loading..."
LORD (SSB) Safetied Sandwich Mounts are designed for applications requiring a significant difference in stiffness between vertical and horizontal direction of loading.
"Dynamically effective in all directions"
SSB Series Mounts have been developed for vehicular, construction and industrial applications. They are designed to support engines, cabs and accessory units while isolating vibration and absorbing shock.
Load rating for these mounts varies from 110 lbs. to 900 lbs. with a natural frequency of approximately 21-24 Hz. Axial or compression spring rate is 8 or more times the radial or shear spring rate. Travel is limited in both directions by rubber in compression which provides snubbing.
REQUEST A QUOTE - LORD SSB - Safetied Rubber Sandwich Mounts (Kits)
DeltaFlex is committed to providing you with the best customer experience possible.
Thank you for taking the time to learn about DeltaFlex and requesting a quote for our LORD SSB - Safetied Rubber Sandwich Mounts (Kits).
Our goal is to provide you with most efficient and effective customer support. The more information you can provide upfront, the more diligent we can be in getting a quote to you or assisting you with your request.
We know that your time is valuable. So, we have filled-in some of the information for you.
Thank you...for putting DeltaFlex to work for you.
Quick Quote
CUSTOMER SUPPORT QUESTION - LORD SSB - Safetied Rubber Sandwich Mounts (Kits)
DeltaFlex is committed to providing you with the best customer support possible.
Thank you for taking the time to learn about DeltaFlex and our LORD SSB - Safetied Rubber Sandwich Mounts (Kits).
Our goal is to provide you with most efficient and effective customer service. The more information you can provide upfront, the more diligent we can be in assisting you with your request.
We know that your time is valuable, so we have already filled-in some of the information for you.
Thank you...for putting DeltaFlex to work for you.
Ask A Question
ENGINEERING ASSISTANCE - LORD SSB - Safetied Rubber Sandwich Mounts (Kits)
DeltaFlex is committed to providing you with the best engineering support experience possible.
"Frequently vibration isolation problems require a system engineering analysis..." - Put us to work for you.
Thank you for taking the time to learn about DeltaFlex and our LORD SSB - Safetied Rubber Sandwich Mounts (Kits). Our applications engineer will help find the right solution for your application.
Our goal is to provide you with most efficient and effective engineering support. The more information you can provide upfront, the more diligent we can be in assisting you with your request.
We know that your time is valuable. So, we have filled-in some of the information for you.
Thank you...for putting DeltaFlex to work for you.
Engineering Support
Features & Benefits
|
|
|
Mating bracket requires only through hole into which mounts and spacers are inserted and assembly is completed with standard bolt and nut. Tightening torque is standard for grade 2 or 8 bolt, no special adjustment or shimming is necessary.
|
clear
Part #
|
clear
Max Axial Static Load Rating at Deflection
|
clear
Kit Number
|
clear
Mounting P/N
|
clear
Spacer P/N
|
clear
Bolt Size (Standard)
|
clear
Bolt Grade/Class (SAE J429 or SAE J1199)
|
|---|---|---|---|---|---|---|
| SSB20-1000-2 | 185 lbs at 0.035 in | SSB20-1000-4 | J-7401-27 | Y-30100-7-1 | 0 1/2" | 2 SAE J429 / 5.8 SAE J1199 |
| SSB20-1000-4 | 300 lbs at 0.040 in | SSB20-1000-4 | J-7401-29 | Y-30100-7-1 | 0 1/2" | 2 SAE J429 / 5.8 SAE J1199 |
| SSB26-1000-1 | 400 lbs at 0.035 in | SSB26-1000-1 | J-3049-67 | Y-30100-7-1 | 0 1/2" | 2 SAE J429 / 5.8 SAE J1199 |
| SSB26-1000-5 | 685 lbs at 0.040 in | SSB26-1000-5 | J-3049-70 | Y-30100-7-1 | 0 1/2" | 2 SAE J429 / 5.8 SAE J1199 |
| SSB33-1000-2 | 625 lbs at 0.045 in | SSB33-1000-2 | SSB33-1001-2 | Y-32190-1-1 | 0 3/4" | 8 SAE J429 / 10.9 SAE J1199 |
| SSB33-1000-4 | 1125 lbs at 0.03 in | SSB33-1000-4 | SSB33-1001-4 | Y-32190-1-1 | 0 3/4" | 8 SAE J429 / 10.9 SAE J1199 |
|
clear
Part #
|
clear
Max Axial Static Load Rating at Deflection (N/mm)
|
clear
Kit Number
|
clear
Mounting P/N
|
clear
Spacer P/N
|
clear
Bolt Size (Metric)
|
|---|---|---|---|---|---|
| SSB20-1000-2 | 825 N at 0.90 mm | SSB20-1000-4 | J-7401-27 | Y-30100-7-1 | M12 |
| SSB20-1000-4 | 1335 N at 1.02 mm | SSB20-1000-4 | J-7401-29 | Y-30100-7-1 | M12 |
| SSB26-1000-1 | 1780 N at 0.90 mm | SSB26-1000-1 | J-3049-67 | Y-30100-7-1 | M12 |
| SSB26-1000-5 | 3050 N at 1.02 mm | SSB26-1000-5 | J-3049-70 | Y-30100-7-1 | M12 |
| SSB33-1000-2 | 2780 N at 1.15 mm | SSB33-1000-2 | SSB33-1001-2 | Y-32190-1-1 | M18 |
| SSB33-1000-4 | 5005 N at 0.076 mm | SSB33-1000-4 | SSB33-1001-4 | Y-32190-1-1 | M18 |
|

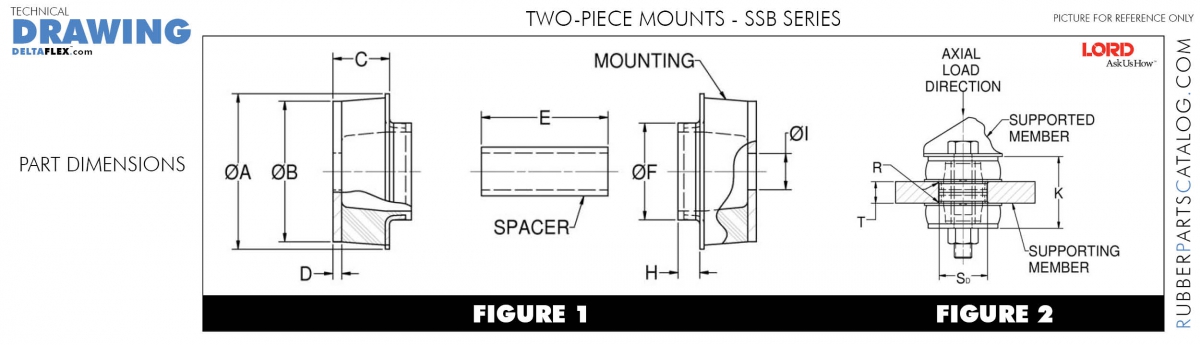

clear
Part #
|
clear
A (in.)
|
clear
B (in.)
|
clear
C (in.)
|
clear
D (in.)
|
clear
E (in.)
|
clear
F (in.)
|
clear
H (in.)
|
clear
I (in.)
|
clear
K (in)
|
clear
T (in.)
|
|---|---|---|---|---|---|---|---|---|---|---|
| SSB20-1000-2 | 2.22 in. | 2.00 in. | 0.81 in. | 0.13 in. | 1.81 in. | 1.38 in. | 0.31 in. | 0.51 in. | 2.06 in. | 0.63 in. |
| SSB20-1000-4 | 2.22 in. | 2.00 in. | 0.81 in. | 0.13 in. | 1.81 in. | 1.38 in. | 0.31 in. | 0.51 in. | 2.06 in. | 0.63 in. |
| SSB26-1000-1 | 2.22 in. | 0.81 in. | 0.13 in. | 1.81 in. | 1.38 in. | 0.31 in. | 0.51 in. | 2.06 in. | 0.63 in. | |
| SSB26-1000-5 | 2.22 in. | 0.81 in. | 0.13 in. | 1.81 in. | 1.38 in. | 0.31 in. | 0.51 in. | 2.06 in. | 0.63 in. | |
| SSB33-1000-2 | 2.22 in. | 2.00 in. | 0.81 in. | 0.13 in. | 1.81 in. | 1.38 in. | 0.31 in. | 0.51 in. | 2.06 in. | 0.63 in. |
| SSB33-1000-4 | 2.22 in. | 2.00 in. | 0.81 in. | 0.13 in. | 1.81 in. | 1.38 in. | 0.31 in. | 0.51 in. | 2.06 in. | 0.63 in. |
|
clear
Part #
|
clear
A (mm)
|
clear
B (mm)
|
clear
C (mm)
|
clear
D (mm)
|
clear
E (mm)
|
clear
F (mm)
|
clear
H (mm)
|
clear
I (mm)
|
clear
K (mm)
|
clear
T (mm)
|
|---|---|---|---|---|---|---|---|---|---|---|
| SSB20-1000-2 | 56.4 mm | 50.8 mm | 20.6 mm | 3.2 mm | 46.0 mm | 35.0 mm | 7.9 mm | 12.9 mm | 52.3 mm | 15.9 mm |
| SSB20-1000-4 | 56.4 mm | 50.8 mm | 20.6 mm | 3.2 mm | 46.0 mm | 35.0 mm | 7.9 mm | 12.9 mm | 52.3 mm | 15.9 mm |
| SSB26-1000-1 | 66.5 mm | 20.6 mm | 3.2 mm | 46.0 mm | 35.0 mm | 7.9 mm | 12.9 mm | 52.3 mm | 15.9 mm | |
| SSB26-1000-5 | 66.5 mm | 20.6 mm | 3.2 mm | 46.0 mm | 35.0 mm | 7.9 mm | 12.9 mm | 52.3 mm | 15.9 mm | |
| SSB33-1000-2 | 82.3 mm | 81.5 mm | 20.6 mm | 3.2 mm | 46.0 mm | 46.7 mm | 7.4 mm | 19.4 mm | 52.3 mm | 15.9 mm |
| SSB33-1000-4 | 82.3 mm | 81.5 mm | 20.6 mm | 3.2 mm | 46.0 mm | 46.7 mm | 7.4 mm | 19.4 mm | 52.3 mm | 15.9 mm |
