LORD CB-1180 Series Center Bonded Rubber Isolators Mounts

Static Axial Load Range: 400 - 700 lbs (1780 - 3115 N)

"Provides excellent vibration isolation characteristics for on-highway and off-highway vehicle cabs..."

Designed for load ratings of 400 to 700 pounds with a natural frequency of 12 to 14 Hz. This mount series provides excellent vibration isolation characteristics for on-highway and off-highway vehicle cabs. The softer spring rate provides this outstanding performance feature.

Features & Benefits

Dynamically effective in all directions
Noise attenuation
Rebound capacity
Economical
Easy to install
No special tools or torquing requirements
Long service life
Requires small space
Fail safe
Metals corrosion protected

Delta-Flex-LORD-Center-Bonded-Mounts-CB-1180-Series

CATALOG

Application analysis forms

Lets Get Started!

Quick Quote

Ask A Question

Engineering Support

ENGINEERING ASSISTANCE - LORD CB-1180 Series Center Bonded Rubber Isolators Mounts

DeltaFlex is committed to providing you with the best engineering support experience possible.

"Frequently vibration isolation problems require a system engineering analysis..." - Put us to work for you.

Thank you for taking the time to learn about DeltaFlex and our LORD CB-1180 Series Center Bonded Rubber Isolators Mounts. Our applications engineer will help find the right solution for your application.

Our goal is to provide you with most efficient and effective engineering support. The more information you can provide upfront, the more diligent we can be in assisting you with your request.

We know that your time is valuable. So, we have filled-in some of the information for you.

Thank you...for putting DeltaFlex to work for you.

Engineering Support

For Extra Rebound Load Capacity

In addition, the improved design offers greater rebound capacity to meet the severe requirements of today's equipment. The completely safetied design provides vibration and shock protection all all directions. Proper installation of the mount is assured by its design. The inner member to which the elastomer is bonded acts as a spacer to permit normal torquing of the attachment bolt. The mount is designed for Grade 8 bolt torquing. Standard sizes are available from stock.

Custom designs can be provided to satisfy special requirements.

Specs

Specs Metric

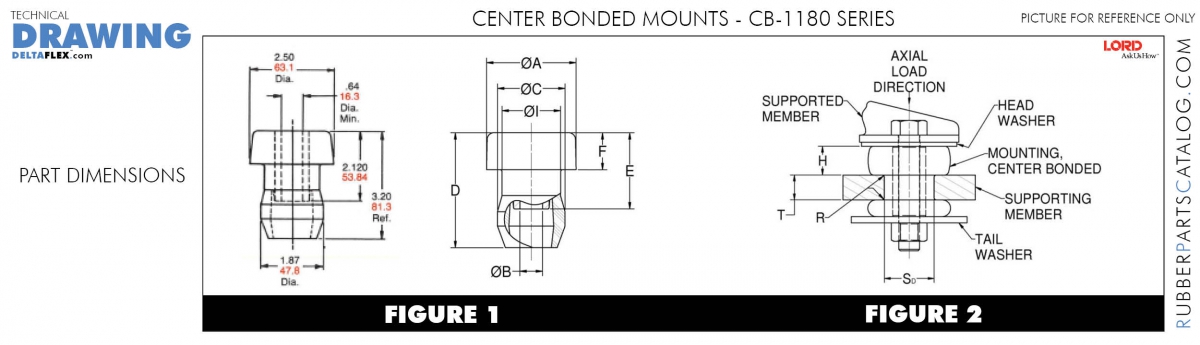

Dimensions

Dimensions Metric

reset matrix

clear Part #	clear Axial Static Load (lbs.)	clear Deflection (in.)	clear Head Washer	clear Tail Washer	clear Bolt Size
CB-1180-1	400 lbs.	0.135	J-2049-68	J-2049-70	0 5/8"
CB-1180-2	700 lbs.	0.156	J-2049-68	J-2049-70	0 5/8"

reset matrix

clear Part #	clear Axial Static Load (N)	clear Deflection (mm)	clear Bolt Size (Metric)
CB-1180-1	1780 N	3.40 mm	M16
CB-1180-2	3115 N	3.90 mm	M16

reset matrix

clear Part #	clear A (in.)	clear B (in.)	clear C (in.)	clear D (in.)	clear E (in.)	clear F (in.)	clear H (in.)	clear I (in.)	clear R (in.)	clear SD (in.)	clear T (in.)
CB-1180-1	2.50 in.	0.64 in.	1.87 in.	3.20 in.	2.12 in.	1.01 in.	0.87 in.	1.63 in.	0.08 in.	1.50 in.	0.75 in.
CB-1180-2	2.50 in.	0.64 in.	1.87 in.	3.20 in.	2.12 in.	1.01 in.	0.87 in.	1.63 in.	0.08 in.	1.50 in.	0.75 in.

reset matrix

clear Part #	clear A (mm)	clear B (mm)	clear C (mm)	clear D (mm)	clear E (mm)	clear F (mm)	clear H (mm)	clear I (mm)	clear R (mm)	clear S (mm)	clear T (mm)
CB-1180-1	63.1 mm	16.3 mm	47.8 mm	81.3 mm	53.8 mm	25.7 mm	22.1 mm	41.3 mm	1.9 mm	38.1 mm	19.1 mm
CB-1180-2	63.1 mm	16.3 mm	47.8 mm	81.3 mm	53.8 mm	25.7 mm	22.1 mm	41.3 mm	1.9 mm	38.1 mm	19.1 mm
