LORD Rubber Shock Mounts - Industrial Machinery Mounts
Max. Axial Load: 750 - 7,500 lbs (3336 - 33,362 N)
"Efficiently absorb shock and structural noise transmission from heavy industrial machinery..."
Industrial Shockmounts efficiently absorb shock and structural noise transmission from heavy industrial machinery. Adjacent controls, sensitive instruments and precision machines are protected from impact disturbances which could hamper their performance. Worker comfort is increased and building structures need less maintenance.
Applications
- Punch Presses
- Printing Presses
- Metal Shears
- Rubber Mills
- Brakes
- Forge Hammers
The rugged , compact design consists of a soft rubber flexing element permanently bonded to steel top and bottom plates. The specially formed top plate restrains translational movement and minimizes machine sway.
REQUEST A QUOTE - LORD Rubber Shock Mounts - Industrial Machinery Mounts
DeltaFlex is committed to providing you with the best customer experience possible.
Thank you for taking the time to learn about DeltaFlex and requesting a quote for our LORD Rubber Shock Mounts - Industrial Machinery Mounts.
Our goal is to provide you with most efficient and effective customer support. The more information you can provide upfront, the more diligent we can be in getting a quote to you or assisting you with your request.
We know that your time is valuable. So, we have filled-in some of the information for you.
Thank you...for putting DeltaFlex to work for you.
Quick Quote
CUSTOMER SUPPORT QUESTION - LORD Rubber Shock Mounts - Industrial Machinery Mounts
DeltaFlex is committed to providing you with the best customer support possible.
Thank you for taking the time to learn about DeltaFlex and our LORD Rubber Shock Mounts - Industrial Machinery Mounts.
Our goal is to provide you with most efficient and effective customer service. The more information you can provide upfront, the more diligent we can be in assisting you with your request.
We know that your time is valuable, so we have already filled-in some of the information for you.
Thank you...for putting DeltaFlex to work for you.
Ask A Question
ENGINEERING ASSISTANCE - LORD Rubber Shock Mounts - Industrial Machinery Mounts
DeltaFlex is committed to providing you with the best engineering support experience possible.
"Frequently vibration isolation problems require a system engineering analysis..." - Put us to work for you.
Thank you for taking the time to learn about DeltaFlex and our LORD Rubber Shock Mounts - Industrial Machinery Mounts. Our applications engineer will help find the right solution for your application.
Our goal is to provide you with most efficient and effective engineering support. The more information you can provide upfront, the more diligent we can be in assisting you with your request.
We know that your time is valuable. So, we have filled-in some of the information for you.
Thank you...for putting DeltaFlex to work for you.
Engineering Support
Features and Benefits
|
|
|
|
|
|
|
|
|
|
|
|
Three standard sizes are available to support loads of 750 to 7,500 pounds per mounting. For greater loads, combinations of mountings can be used.
Industrial Shockmounts deflect 0.03" under their maximum rated load. This minimal deflection maintains machine stability. The neoprene elastomer is specially compounded to resist oil, dirt and most adverse industrial environments. No maintenance is required and long service life is assured.
The low profile design (1 -3/16" height) requires minimallifting of machinery that results in a 1-3/16" shift ofthe machine's center of gravity. The top plate is tapped to accept a standard 5/8-11 bolt.
Through holes are provided on each side of its bottom plate extension for bolting the shockmount to the floor.

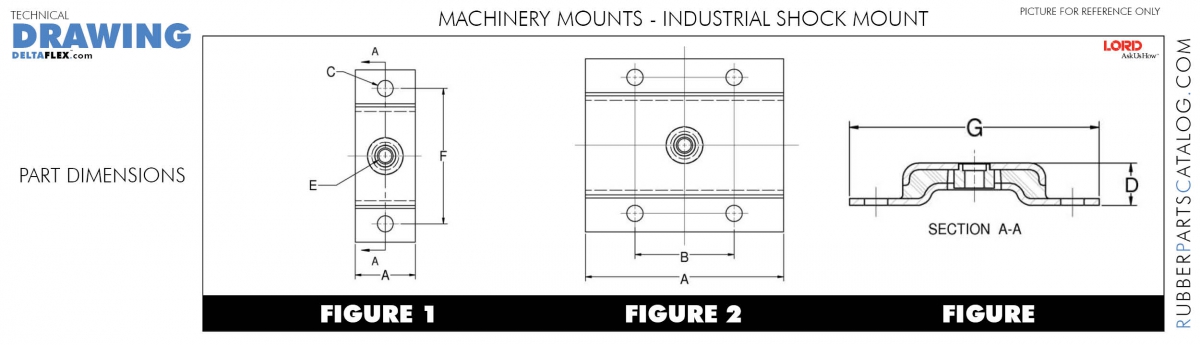

Use the illustration and table below to help choose the right mount for your application.
|
clear
Part #
|
clear
Max. Static Load (lbs)
|
clear
Axial Load Range (lbs.)
|
clear
Deflection (in.)
|
|---|---|---|---|
| J-2919-1 | 1500 lbs. | 750 lbs. - 1500 lbs. | 0.03 in. |
| J-2867-1 | 3000 lbs. | 1500 - 3000 lbs. | 0.03 in. |
| J-2866-1 | 7500 lbs. | 3000 - 7500 lbs. | 0.03 in. |
|
clear
Part #
|
clear
Max. Static Load (N)
|
clear
Axial Load Range (N)
|
clear
Deflection (mm)
|
|---|---|---|---|
| J-2919-1 | 6672 N | 3336 N - 6672 N | 0.8 mm |
| J-2867-1 | 13345 N | 6672 - 13,345 N | 0.8 mm |
| J-2866-1 | 33362 N | 13,345 - 33,362 N | 0.8 mm |
