LORD H-Series TUBEFORM Center Bonded Rubber Mounts

Static Axial Load Range: 23 - 510 lbs (101 - 2224 N)

"Isolate vibration, control shock and reduce noise due to structure-borne vibrations..."

LORD Center-Bonded Mounts isolate vibration, control shock and reduce noise due to structure-borne vibrations. Available in a full range of rated load capacities and able to withstand shock loads of 10 Gs, these mounts effectively protect equipment and improve operator comfort.

Center-bonded mounts provide flexible suspension systems for mobile, transport-mounted or portable equipment. Typical applications include engines, cabs, fuel tanks, pumps, air conditioning units, compressors and industrial machinery.

Features & Benefits

Vibration isolation in all directions
Noise attenuation
One-piece design for easy, low-cost installation
Long service life
Consistent performance because of permanently bonded design
Shock protection
Space-saving size
Accommodate English and metric bolts

Catalog

Application analysis forms

Lets Get Started!

Quick Quote

Ask A Question

Engineering Support

ENGINEERING ASSISTANCE - LORD H-Series TUBEFORM Center Bonded Rubber Mounts

DeltaFlex is committed to providing you with the best engineering support experience possible.

"Frequently vibration isolation problems require a system engineering analysis..." - Put us to work for you.

Thank you for taking the time to learn about DeltaFlex and our LORD H-Series TUBEFORM Center Bonded Rubber Mounts. Our applications engineer will help find the right solution for your application.

Our goal is to provide you with most efficient and effective engineering support. The more information you can provide upfront, the more diligent we can be in assisting you with your request.

We know that your time is valuable. So, we have filled-in some of the information for you.

Thank you...for putting DeltaFlex to work for you.

Engineering Support

Specs

Dimensions

Dimensions Metric

reset matrix

clear Part #	clear Max Axial Static Load Rating at Deflection	clear Figure
H-1002-1	23 lbs at 0.65 in / 101 N at 1.7 mm	2
H-3002-1	70 lbs at 0.68 in / 308 N at 1.7 mm	2
H-3004	140 lbs at 0.68 in / 616 N at 1.7 mm	1
H-5017	225 lbs at 0.78 in / 990 N at 2.0 mm	1
H-5019	86 lbs at 0.78 in / 378 N at 2.0 mm	1

reset matrix

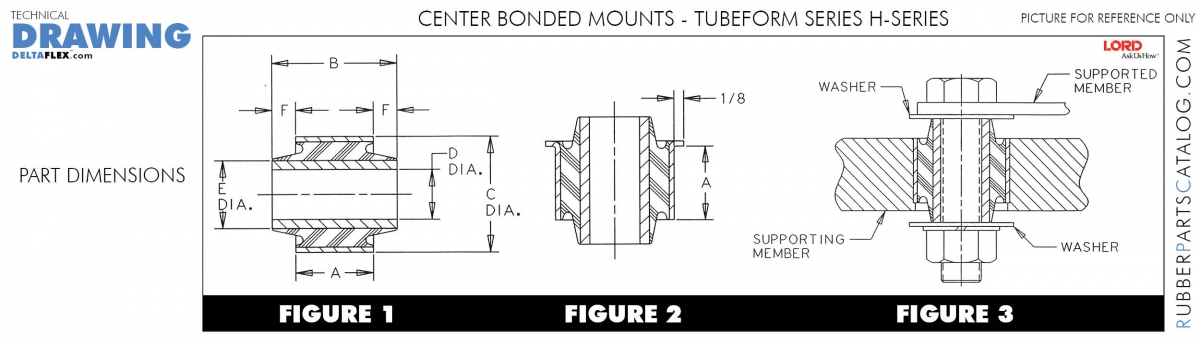

clear Part #	clear A (in.)	clear B (in.)	clear C (in.)	clear D (in.)	clear E (in.)	clear F (in.)
H-1002-1	0.50 in.	1.00 in.	1.02 in.	0.26 in.	0.44 in.	0.25 in.
H-3002-1	0.50 in.	1.13 in.	1.25 in.	0.46 in.	0.69 in.	0.31 in.
H-3004	1.00 in.	1.63 in.	1.25 in.	0.46 in.	0.69 in.	0.31 in.
H-5017	1.50 in.	2.13 in.	1.50 in.	0.63 in.	0.88 in.	0.31 in.
H-5019	0.50 in.	1.13 in.	1.50 in.	0.63 in.	0.88 in.	0.31 in.

reset matrix

clear Part #	clear A (mm)	clear B (mm)	clear C (mm)	clear D (mm)	clear E (mm)	clear F (mm)
H-1002-1	12.7 mm	25.4 mm	25.4 mm	6.6 mm	11.1 mm	6.4 mm
H-3002-1	12.7 mm	28.6 mm	31.8 mm	11.6 mm	17.5 mm	8.0 mm
H-3004	25.4 mm	41.3 mm	31.8 mm	11.6 mm	17.5 mm	8.0 mm
H-5017	38.1 mm	54.0 mm	38.1 mm	16.1 mm	22.2 mm	8.0 mm
H-5019	38.1 mm	54.0 mm	38.1 mm	16.1 mm	22.2 mm	8.0 mm
