LORD CBB & CBC Series Center Bonded Two Piece Rubber Mount Isolator

Load Range: 440 lbs - 1,565 lbs (1960 - 6950 N)

"For applications involving severe dynamic forces in the static load direction as well as the rebound direction..."

CBB and CBC Series Center Bonded rubber Mounts are designed for applications involving severe dynamic forces in the static load direction as well as the rebound direction. Each series is available in four load capacities ranging from 425 lbs to 1,250 lbs· with axial natural frequencies of approximately 15 Hz to 18 Hz.

Features & Benefits

  • Dynamically effective in all directions
  • Prevent mechanical transmission of noise
  • Accommodate misalignment and distortion
  • High rebound capacity
  • Easy to install with common tools
  • Standard bolt torque assures proper assembly
  • Top and bottom parts alike, cannot be misassembled.
  • Fail safe assembly
  • Sized for English or Metric bolts
  • Economical Long dependable service life

CBB & CBC

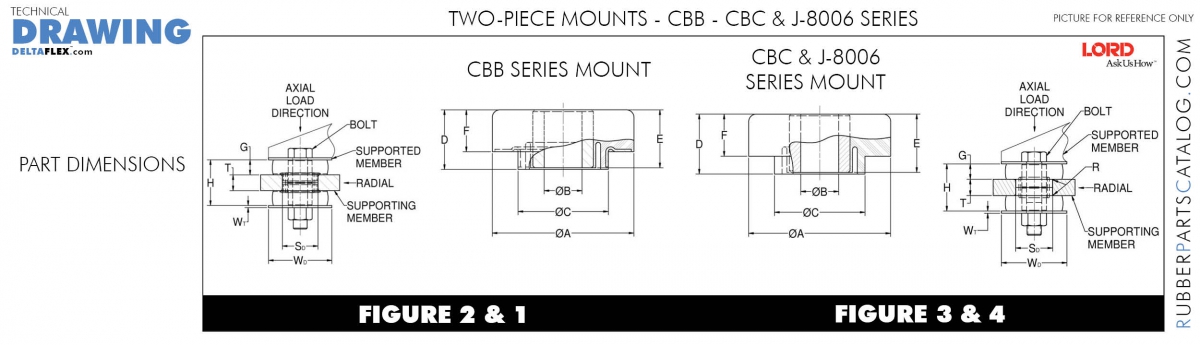

Rubber-Parts-Catalog-Delta-Flex-LORD-Two-Piece-Mounts-CBB-CBC-J-8006-Series-figure
Catalog
Application Analysis Forms
Lets Get Started!

Quick Quote
Ask A Question
Engineering Support
  (800) 657-0747
  Address
  About Us

CBB/CBC Series Mounts isolate vibration, absorb shock, reduce noise and accommodate racking and twisting. They are intended for on-highway, off-highway vehicles, construction and industrial machines.

CBB SERIES MOUNT

CBB Series Mounts have bonded inner and outer metal members. The outer members allow the parts to be installed in sockets without radii or chamfers.CBB series is specifically designed to provide soft radial spring rates for good vibration isolation.

CBC SERIES MOUNT

CBC Series Mounts have bonded inner members and are pre-compressed into sockets with chamfers or radii to provide stiffer radial spring rates. Oil resistant elastomer is used in both series.

RubberPartsCatalog.com DeltaFlex Vibration Control - CBC CBB & J-8006

Specs
Specs Metric
Dimensions
Dimensions Metric
reset matrix
clear
Part #
clear
Max Axial Static Load Rating at Deflection
clear
Bolt Size (Standard)
clear
Bolt Grade/Class (SAE J429 or SAE J1199)
CBB35-2-7 440 lbs at 0.5 in 0 7/8" 8 SAE J429 / 10.9 SAE J1199
CBB35-2-9 940 lbs at 0.5 in 0 7/8" 8 SAE J429 / 10.9 SAE J1199
CBB45-2-7 1000 lbs at 0.6 in 1" 8 SAE J429 / 10.9 SAE J1199
CBB45-2-9 1565 lbs at 0.6 in 1" 8 SAE J429 / 10.9 SAE J1199
CBC35-2-7 500 lbs at 0.5 in 0 7/8" 8 SAE J429 / 10.9 SAE J1199
CBC35-2-9 875 lbs at 0.5 in 0 7/8" 8 SAE J429 / 10.9 SAE J1199
CBC45-2-7 1030 lbs at 0.6 in 1" 8 SAE J429 / 10.9 SAE J1199
CBC45-2-9 1565 lbs at 0.6 in 1" 8 SAE J429 / 10.9 SAE J1199
J-8006-10 440 lbs at 0.04 in 0 5/8" 2 SAE J429 / 9.8 SAE J1199
J-8006-66 565 lbs at 0.04 in 0 5/8" 8 SAE J429 / 10.9 SAE J1199
reset matrix
clear
Part #
clear
Max Axial Static Load Rating at Deflection (N/mm)
clear
Bolt Size (Metric)
CBB35-2-7 1960 N at 1.27 mm M20
CBB35-2-9 4180 N at 1.27 mm M20
CBB45-2-7 4448 N at 1.59 mm M24
CBB45-2-9 6960 N at 1.59 mm M24
CBC35-2-7 2225 N at 1.27 mm M20
CBC35-2-9 3890 N at 1.27 mm M20
CBC45-2-7 4585 N at 1.59 mm M24
CBC45-2-9 6950 N at 1.59 mm M24
J-8006-10 1960 N at 0.95 mm M16
J-8006-66 2515 N at 0.95 mm M16
reset matrix
clear
Part #
clear
A (in.)
clear
B (in.)
clear
C (in.)
clear
E (in.)
clear
F (in.)
clear
G (in.)
clear
H (in.)
clear
R (in.)
clear
T (in.)
CBB35-2-7 3.50 in. 0.94 in. 2.24 in. 1.44 in. 1.04 in. 0.94 in. 2.88 in. 1.00 in.
CBB35-2-9 3.50 in. 0.94 in. 2.25 in. 1.44 in. 1.04 in. 0.94 in. 2.88 in. 1.00 in.
CBB45-2-7 4.50 in. 1.06 in. 2.48 in. 1.69 in. 1.32 in. 1.19 in. 3.38 in. 1.00 in.
CBB45-2-9 4.50 in. 1.06 in. 2.48 in. 1.69 in. 1.32 in. 1.19 in. 3.38 in. 1.00 in.
CBC35-2-7 3.50 in. 0.94 in. 2.23 in. 1.44 in. 1.04 in. 0.94 in. 2.88 in. 0.12 in. 1.00 in.
CBC35-2-9 3.50 in. 0.94 in. 2.23 in. 1.44 in. 1.04 in. 0.94 in. 2.88 in. 0.12 in. 1.00 in.
CBC45-2-7 4.50 in. 1.06 in. 2.48 in. 1.69 in. 1.32 in. 1.19 in. 3.38 in. 0.12 in. 1.00 in.
CBC45-2-9 4.50 in. 1.06 in. 2.48 in. 1.69 in. 1.32 in. 1.19 in. 3.38 in. 0.12 in. 1.00 in.
J-8006-10 3.50 in. 0.94 in. 2.24 in. 1.44 in. 1.04 in. 0.94 in. 2.88 in. 0.03 in. 1.00 in.
J-8006-66 3.50 in. 0.94 in. 2.24 in. 1.44 in. 1.04 in. 0.94 in. 2.88 in. 0.06 in. 1.00 in.
reset matrix
clear
Part #
clear
A (mm)
clear
B (mm)
clear
C (mm)
clear
D (mm)
clear
E (mm)
clear
F (mm)
clear
G (mm)
clear
H (mm)
clear
R (mm)
clear
T (mm)
CBB35-2-7 88.9 mm 23.8 mm 56.9 mm 37.6 mm 36.6 mm 26.4 mm 23.9 mm 73.2 mm 25.4 mm
CBB35-2-9 88.9 mm 23.8 mm 56.9 mm 37.6 mm 36.6 mm 26.4 mm 23.9 mm 73.2 mm 25.4 mm
CBB45-2-7 114.2 mm 27.1 mm 63.1 mm 44.7 mm 42.9 mm 33.5 mm 30.2 mm 85.8 mm 25.4 mm
CBB45-2-9 114.3 mm 27.1 mm 63.1 mm 44.7 mm 42.9 mm 33.5 mm 30.2 mm 85.8 mm 25.4 mm
CBC35-2-7 88.9 mm 23.8 mm 56.6 mm 40.6 mm 36.6 mm 26.4 mm 23.9 mm 73.2 mm 3.1 mm 25.4 mm
CBC35-2-9 88.9 mm 23.8 mm 56.6 mm 40.6 mm 36.6 mm 26.4 mm 23.9 mm 73.2 mm 3.1 mm 25.4 mm
CBC45-2-7 114.3 mm 27.1 mm 63.0 mm 49.3 mm 42.9 mm 33.5 mm 30.2 mm 85.8 mm 3.1 mm 25.4 mm
CBC45-2-9 114.3 mm 27.1 mm 63.0 mm 49.3 mm 42.9 mm 33.5 mm 30.2 mm 85.8 mm 3.1 mm 25.4 mm
J-8006-10 63.5 mm 16.3 mm 41.3 mm 20.6 mm 14.2 mm 15.7 mm 11.9 mm 28.5 mm 0.8 mm 4.6 mm
J-8006-66 63.5 mm 16.3 mm 38.1 mm 30.2 mm 23.9 mm 15.7 mm 12.7 mm 28.5 mm 1.5 mm 22.4 mm
