Offering thousands of standard industrial rubber products and innovative “low” and “high” tech custom elastomeric products.

(800) 657-0747

Rubber Parts Catalog^®.com

DeltaFlex

VIBRATION CONTROL

Print This Page Email This Page Bookmarks Bar

LORD Rubber Lattice Mounts

Max. Static Load: 425 - 4,000 lbs (1890 - 17,793 N)

"Engineered to isolate vertical shocks and reduce transmission of structural noise through floors..."

LORD Machinery Mounts are specifically engineered to isolate vertical shocks and reduce transmission of structural noise through floors.

Lattice Mounts are designed to support medium to heavy equipment with disturbing frequencies as low as 360 cpm.

The lattice mount design provides a soft vertical spring rate combined with lateral stability.

Lattice Mounts are recommended for applications where disturbing frequencies are as low as 6 Hz.

Features and Benefits

Heavy duty
Low vertical spring rate
May be floor mounted
LORD quality

Typical applications

Catalog

Application analysis FORM

Lets Get Started!

Quick Quote

Ask A Question

Engineering Support

ENGINEERING ASSISTANCE - LORD Rubber Lattice Mounts

DeltaFlex is committed to providing you with the best engineering support experience possible.

"Frequently vibration isolation problems require a system engineering analysis..." - Put us to work for you.

Thank you for taking the time to learn about DeltaFlex and our LORD Rubber Lattice Mounts. Our applications engineer will help find the right solution for your application.

Our goal is to provide you with most efficient and effective engineering support. The more information you can provide upfront, the more diligent we can be in assisting you with your request.

We know that your time is valuable. So, we have filled-in some of the information for you.

Thank you...for putting DeltaFlex to work for you.

Engineering Support

Large Produce Spinners
Shaker Screens
Sifters
Rubber Mills
Air Compressors
Industrial Equipment

Large Engines
Large Generators
HVAC Air conditioning units
On-Track Rail Equipment
Foundry shakeout tables
Pump sets

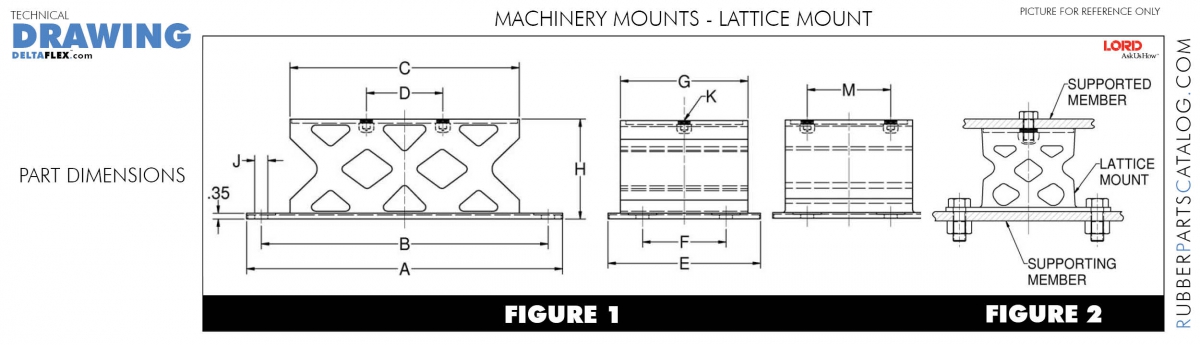

Use the Illustration and table below to help select the right mount for your application.

Specs

Specs Metric

Dimensions

Dimensions Metric

reset matrix

clear Part #	clear Max. Static Load (lbs)	clear Deflection (in.)
J-5984-20	640 lbs.	0.62 in.
J-4557-12	750 lbs.	0.50 in.
J-5984-19	375 lbs.	0.62 in.
J-5984-10	300 lbs.	0.62 in.
J-5984-11	425 lbs.	0.62 in.
J-4557-13	1000 lbs.	0.50 in.
J-4976-8	650 lbs.	0.62 in.
J-5665-34	4000 lbs.	1.00 in.
J-5665-33	3000 lbs.	1.00 in.
J-5665-32	2000 lbs.	1.00 in.
J-4976-9	850 lbs.	0.62 in.
J-5665-35	1300 lbs.	1.00 in.

reset matrix

clear Part #	clear Max. Static Load (N)	clear Deflection (mm)
J-5984-20	2847 N	15.7 mm
J-4557-12	3336 N	12.7 mm
J-5984-19	1668 N	15.7 mm
J-5984-10	1334 N	15.7 mm
J-5984-11	1890 N	15.7 mm
J-4557-13	4448 N	12.7 mm
J-4976-8	2891 N	15.7 mm
J-5665-34	17793 N	25.4 mm
J-5665-33	13345 N	25.4 mm
J-5665-32	8896 N	25.4 mm
J-4976-9	3781 N	15.7 mm
J-5665-35	5783 N	25.4 mm

reset matrix

clear Part #	clear A (in.)	clear B (in.)	clear C (in.)	clear D (in.)	clear E (in.)	clear F (in.)	clear G (in.)	clear H (in.)	clear J (in.)
J-5984-20	9.75 in.	8.12 in.	5.50 in.	0.00 in.	4.50 in.	2.06 in.	3.38 in.	4.91 in.	0.76 in.
J-4557-12	12.00 in.	10.38 in.	8.25 in.	2.75 in.	5.00 in.	3.25 in.	4.06 in.	3.50 in.	0.76 in.
J-5984-19	9.75 in.	8.12 in.	5.50 in.	0.00 in.	4.50 in.	2.06 in.	3.38 in.	4.91 in.	0.76 in.
J-5984-10	9.75 in.	8.12 in.	5.50 in.	0.00 in.	4.50 in.	2.06 in.	3.38 in.	4.19 in.	0.76 in.
J-5984-11	9.75 in.	8.12 in.	5.50 in.	0.00 in.	4.50 in.	2.06 in.	3.38 in.	4.19 in.	0.76 in.
J-4557-13	12.00 in.	10.38 in.	8.50 in.	2.75 in.	5.00 in.	3.25 in.	4.08 in.	3.50 in.	0.76 in.
J-4976-8	12.50 in.	10.88 in.	8.25 in.	2.75 in.	5.50 in.	3.25 in.	4.56 in.	4.19 in.	0.76 in.
J-5665-34	18.60 in.	16.88 in.	13.50 in.	4.50 in.	9.14 in.	5.00 in.	7.62 in.	6.08 in.	0.76 in.
J-5665-33	18.60 in.	16.88 in.	13.50 in.	4.50 in.	9.14 in.	5.00 in.	7.62 in.	6.08 in.	0.76 in.
J-5665-32	18.60 in.	16.88 in.	13.50 in.	4.50 in.	9.14 in.	5.00 in.	7.62 in.	6.08 in.	0.76 in.
J-4976-9	12.50 in.	10.88 in.	8.25 in.	2.75 in.	5.50 in.	3.25 in.	4.56 in.	4.19 in.	0.76 in.
J-5665-35	14.23 in.	12.44 in.	9.06 in.	9.14 in.	5.00 in.	7.62 in.	6.08 in.	0.76 in.	5.00 in.

reset matrix

clear Part #	clear A (mm)	clear B (mm)	clear C (mm)	clear D (mm)	clear E (mm)	clear F (mm)	clear G (mm)	clear H (mm)	clear J (mm)
J-5984-20	247.7 mm	206.2 mm	139.7 mm	0.0 mm	114.3 mm	52.3 mm	85.9 mm	124.7 mm	19.3 mm
J-4557-12	304.8 mm	263.7 mm	209.6 mm	69.9 mm	127.0 mm	82.6 mm	103.1 mm	88.9 mm	19.3 mm
J-5984-19	247.7 mm	206.2 mm	139.7 mm	0.0 mm	114.3 mm	52.3 mm	85.9 mm	124.7 mm	19.3 mm
J-5984-10	247.7 mm	206.2 mm	139.7 mm	0.0 mm	114.3 mm	52.3 mm	85.9 mm	124.7 mm	19.3 mm
J-5984-11	247.7 mm	206.2 mm	139.7 mm	0.0 mm	114.3 mm	52.3 mm	85.9 mm	124.7 mm	19.3 mm
J-4557-13	304.8 mm	263.7 mm	215.9 mm	69.9 mm	127.0 mm	82.6 mm	103.6 mm	88.9 mm	19.3 mm
J-4976-8	317.5 mm	276.4 mm	209.6 mm	69.9 mm	139.7 mm	82.6 mm	115.8 mm	106.4 mm	19.3 mm
J-5665-34	472.4 mm	428.8 mm	342.9 mm	114.3 mm	232.2 mm	127.0 mm	193.5 mm	154.4 mm	19.3 mm
J-5665-33	472.4 mm	428.8 mm	342.9 mm	114.3 mm	232.2 mm	127.0 mm	193.5 mm	154.4 mm	19.3 mm
J-5665-32	472.4 mm	428.8 mm	342.9 mm	114.3 mm	232.2 mm	127.0 mm	193.5 mm	154.4 mm	19.3 mm
J-4976-9	317.5 mm	276.4 mm	209.6 mm	69.9 mm	139.7 mm	82.6 mm	115.8 mm	106.4 mm	19.3 mm
J-5665-35	361.4 mm	316.0 mm	230.1 mm	232.2 mm	127.0 mm	193.5 mm	154.4 mm	19.3 mm	127.0 mm
