LORD CB-2200 SERIES TWO-PIECE RUBBER MOUNTS / ISOLATORS

Load Range: 40 lbs - 3,450 lbs (178 - 15,346 N)

"For applications involving severe dynamic forces in the static load direction as well as the rebound direction..."

CB-2200 Series Center Bonded Rubber Mounts / Isolators are designed for applications involving severe dynamic forces in the static load direction as well as the rebound direction.

Features & Benefits

Dynamically effective in all directions
Prevent mechanical transmission of noise
Accommodate misalignment and distortion
High rebound capacity
Easy to install with common tools
Standard bolt torque assures proper assembly
Top and bottom parts alike, cannot be misassembled.
Fail safe assembly
Sized for English or Metric bolts
Economical Long dependable service life

LORD CB-2200 Series - Two Piece Rubber Mount

CATALOG

Application analysis FORMs

Lets Get Started!

Quick Quote

Ask A Question

Engineering Support

ENGINEERING ASSISTANCE - LORD CB-2200 SERIES TWO-PIECE RUBBER MOUNTS / ISOLATORS

DeltaFlex is committed to providing you with the best engineering support experience possible.

"Frequently vibration isolation problems require a system engineering analysis..." - Put us to work for you.

Thank you for taking the time to learn about DeltaFlex and our LORD CB-2200 SERIES TWO-PIECE RUBBER MOUNTS / ISOLATORS. Our applications engineer will help find the right solution for your application.

Our goal is to provide you with most efficient and effective engineering support. The more information you can provide upfront, the more diligent we can be in assisting you with your request.

We know that your time is valuable. So, we have filled-in some of the information for you.

Thank you...for putting DeltaFlex to work for you.

Engineering Support

Specs

Specs Metric

Dimensions

Dimensions Metric

reset matrix

clear Part #	clear Elastomer	clear Plate Type	clear Support Plate Thickness (in.)	clear Max Axial Load at Deflection (lbs.)	clear Deflection (in.)	clear Axial Spring Rate (lbs./in.)	clear Bolt Size (Standard)
CB-2201-1	NR	Thin Plate	0.375 in.	40 lbs.	0.050 in.	800 lbs./in.	0 3/8"
CB-2202-1	NR	Thin Plate	0.500 in.	60 lbs.	0.050 in.	1200 lbs./in.	0 1/2"
CB-2201-2	NR	Thin Plate	0.375 in.	90 lbs.	0.050 in.	1800 lbs./in.	0 3/8"
CB-2202-2	NR	Thin Plate	0.500 in.	120 lbs.	0.050 in.	2400 lbs./in.	0 1/2"
CB-2202-1 THK	NR	Thick Plate	0.563 in.	130 lbs.	0.070 in.	1857 lbs./in.	0 1/2"
CB-2201-3	NR	Thin Plate	0.375 in.	140 lbs.	0.050 in.	2800 lbs./in.	0 3/8"
CB-2202-3	NR	Thin Plate	0.500 in.	160 lbs.	0.050 in.	3200 lbs./in.	0 1/2"
CB-2202-2 THK	NR	Thick Plate	0.563 in.	175 lbs.	0.070 in.	2500 lbs./in.	0 1/2"
CB-2203-1 THK	NR	Thick Plate	0.875 in.	175 lbs.	0.085 in.	2059 lbs./in.	0 5/8"
CB-2204-1	NR	Thin Plate	1.000 in.	200 lbs.	0.050 in.	4000 lbs./in.	0 7/8"
CB-2203-3	NR	Thin Plate	0.750 in.	225 lbs.	0.050 in.	4500 lbs./in.	0 5/8"
CB-2202-3 THK	NR	Thick Plate	0.563 in.	240 lbs.	0.070 in.	3429 lbs./in.	0 1/2"
CB-2201-4	NR	Thin Plate	0.375 in.	250 lbs.	0.050 in.	5000 lbs./in.	0 3/8"
CB-2202-4	NR	Thin Plate	0.500 in.	260 lbs.	0.050 in.	5200 lbs./in.	0 1/2"
CB-2204-2	NR	Thin Plate	1.000 in.	300 lbs.	0.050 in.	6000 lbs./in.	0 7/8"
CB-2205-1	NR	Thin Plate	1.000 in.	300 lbs.	0.050 in.	6000 lbs./in.	1"
CB-2203-4	NR	Thin Plate	0.750 in.	325 lbs.	0.050 in.	6500 lbs./in.	0 5/8"
CB-2202-5	NR	Thin Plate	0.500 in.	380 lbs.	0.050 in.	7600 lbs./in.	0 1/2"
CB-2202-4 THK	NR	Thick Plate	0.563 in.	380 lbs.	0.070 in.	5429 lbs./in.	0 1/2"
CB-2203-3 THK	NR	Thick Plate	0.875 in.	400 lbs.	0.085 in.	4706 lbs./in.	0 5/8"
CB-2204-3	NR	Thin Plate	1.000 in.	400 lbs.	0.050 in.	8000 lbs./in.	0 7/8"
CB-2204-1 THK	NR	Thick Plate	1.125 in.	400 lbs.	0.090 in.	4444 lbs./in.	0 7/8"
CB-2203-5	NR	Thin Plate	0.750 in.	450 lbs.	0.050 in.	3000 lbs./in.	0 5/8"
CB-2203-4 THK	NR	Thick Plate	0.875 in.	500 lbs.	0.085 in.	5882 lbs./in.	0 5/8"
CB-2204-4	NR	Thin Plate	1.000 in.	500 lbs.	0.050 in.	10000 lbs./in.	0 7/8"
CB-2205-2	NR	Thin Plate	1.000 in.	500 lbs.	0.050 in.	10000 lbs./in.	1"
CB-2204-2 THK	NR	Thick Plate	1.250 in.	550 lbs.	0.090 in.	6111 lbs./in.	0 7/8"
CB-2204-5	NR	Thin Plate	1.000 in.	600 lbs.	0.050 in.	12000 lbs./in.	0 7/8"
CB-2202-5 THK	NR	Thick Plate	0.563 in.	630 lbs.	0.070 in.	9000 lbs./in.	0 1/2"
CB-2205-3	NR	Thin Plate	1.000 in.	700 lbs.	0.050 in.	14000 lbs./in.	1"
CB-2204-3 THK	NR	Thick Plate	1.250 in.	700 lbs.	0.090 in.	7778 lbs./in.	0 7/8"
CB-2203-5 THK	NR	Thick Plate	0.875 in.	725 lbs.	0.085 in.	8529 lbs./in.	0 5/8"
CB-2205-7	NR	Thin Plate	1.000 in.	775 lbs.	0.050 in.	20000 lbs./in.	1"
CB-2204-4 THK	NR	Thick Plate	1.250 in.	850 lbs.	0.090 in.	9444 lbs./in.	0 7/8"
CB-2205-4	NR	Thin Plate	1.000 in.	900 lbs.	0.050 in.	18000 lbs./in.	1"
CB-2205-1 THK	NR	Thick Plate	1.250 in.	900 lbs.	0.090 in.	10000 lbs./in.	1"
CB-2204-5 THK	NR	Thick Plate	1.250 in.	1000 lbs.	0.090 in.	11111 lbs./in.	0 7/8"
CB-2205-5	NR	Thin Plate	1.000 in.	1100 lbs.	0.050 in.	22000 lbs./in.	1"
CB-2205-2 THK	NR	Thick Plate	1.250 in.	1200 lbs.	0.090 in.	13333 lbs./in.	1"
CB-2205-9	NR	Thin Plate	1.000 in.	1425 lbs.	0.050 in.	28500 lbs./in.	1"
CB-2205-3 THK	NR	Thick Plate	1.250 in.	1500 lbs.	0.090 in.	16667 lbs./in.	1"
CB-2205-7 THK	NR	Thick Plate	1.250 in.	1600 lbs.	0.090 in.	24444 lbs./in.	1"
CB-2205-70	NR	Thin Plate	1.000 in.	1738 lbs.	0.050 in.	34760 lbs./in.	1"
CB-2205-10	NR	Thin Plate	1.000 in.	1800 lbs.	0.050 in.	36000 lbs./in.	1"
CB-2205-4 THK	NR	Thick Plate	1.250 in.	1800 lbs.	0.090 in.	20000 lbs./in.	1"
CB-2205-5 THK	NR	Thick Plate	1.250 in.	2100 lbs.	0.090 in.	23333 lbs./in.	1"
CB-2203-1	NR	Thin Plate	0.750 in.	100 lbs.	0.050 in.	2000 lbs./in.	0 5/8"
CB-2205-9 THK	NR	Thick Plate	1.250 in.	2825 lbs.	0.090 in.	31389 lbs./in.	1"
CB-2205-10 THK	NR	Thick Plate	1.250 in.	3450 lbs.	0.090 in.	38333 lbs./in.	1"
CB-2205-70 THK	NR	Thick Plate	1.250 in.	3867 lbs.	0.090 in.	42967 lbs./in.	1"

reset matrix

clear Part #	clear Elastomer	clear Plate Type	clear Support Plate Thickness (mm)	clear Max Axial Load at Deflection (N)	clear Deflection (mm)	clear Axial Spring Rate (N/mm)	clear Bolt Size (Metric)
CB-2201-1	NR	Thin Plate	9.5	178 N	1.30 mm	137 N/mm	M10
CB-2202-1	NR	Thin Plate	12.7	267 N	1.30 mm	205 N/mm	M12
CB-2201-2	NR	Thin Plate	9.5	400 N	1.30 mm	308 N/mm	M10
CB-2202-2	NR	Thin Plate	12.7	534 N	1.30 mm	411 N/mm	M12
CB-2202-1 THK	NR	Thick Plate	14.3	578 N	1.80 mm	321 N/mm	M12
CB-2201-3	NR	Thin Plate	9.5	623 N	1.30 mm	479 N/mm	M10
CB-2202-3	NR	Thin Plate	12.7	712 N	1.30 mm	548 N/mm	M12
CB-2202-2 THK	NR	Thick Plate	14.3	778 N	1.80 mm	432 N/mm	M12
CB-2203-1 THK	NR	Thick Plate	22.2	780 N	2.20 mm	355 N/mm	M16
CB-2204-1	NR	Thin Plate	25.4	890 N	1.30 mm	685 N/mm	M20
CB-2203-3	NR	Thin Plate	19.1	1000 N	1.30 mm	769 N/mm	M16
CB-2202-3 THK	NR	Thick Plate	14.3	1068 N	1.80 mm	593 N/mm	M12
CB-2201-4	NR	Thin Plate	9.5	1112 N	1.30 mm	855 N/mm	M10
CB-2202-4	NR	Thin Plate	12.7	1157 N	1.30 mm	890 N/mm	M12
CB-2204-2	NR	Thin Plate	25.4	1330 N	1.30 mm	1023 N/mm	M20
CB-2205-1	NR	Thin Plate	25.4	1334 N	1.30 mm	1026 N/mm	M24
CB-2203-4	NR	Thin Plate	19.1	1450 N	1.30 mm	1708 N/mm	M16
CB-2202-5	NR	Thin Plate	12.7	1690 N	1.30 mm	1300 N/mm	M12
CB-2202-4 THK	NR	Thick Plate	14.3	1690 N	1.80 mm	939 N/mm	M12
CB-2203-3 THK	NR	Thick Plate	22.2	1780 N	2.20 mm	809 N/mm	M16
CB-2204-3	NR	Thin Plate	25.4	1780 N	1.30 mm	1369 N/mm	M20
CB-2204-1 THK	NR	Thick Plate	28.6	1780 N	2.30 mm	774 N/mm	M20
CB-2203-5	NR	Thin Plate	19.1	2000 N	1.30 mm	1538 N/mm	M16
CB-2203-4 THK	NR	Thick Plate	22.2	2220 N	2.20 mm	1009 N/mm	M16
CB-2204-4	NR	Thin Plate	25.4	2220 N	1.30 mm	1708 N/mm	M20
CB-2205-2	NR	Thin Plate	25.4	2224 N	1.30 mm	1711 N/mm	M24
CB-2204-2 THK	NR	Thick Plate	31.8	2450 N	2.30 mm	1065 N/mm	M20
CB-2204-5	NR	Thin Plate	25.4	2670 N	1.30 mm	2054 N/mm	M20
CB-2202-5 THK	NR	Thick Plate	14.3	2802 N	1.80 mm	1557 N/mm	M12
CB-2205-3	NR	Thin Plate	25.4	3114 N	1.30 mm	1011 N/mm	M24
CB-2204-3 THK	NR	Thick Plate	31.8	3110 N	2.30 mm	1352 N/mm	M20
CB-2203-5 THK	NR	Thick Plate	22.2	3220 N	2.20 mm	1464 N/mm	M16
CB-2205-7	NR	Thin Plate	25.4	3447 N	1.30 mm	3422 N/mm	M24
CB-2204-4 THK	NR	Thick Plate	31.8	3780 N	2.30 mm	1643 N/mm	M20
CB-2205-4	NR	Thin Plate	25.4	4003 N	1.30 mm	3079 N/mm	M24
CB-2205-1 THK	NR	Thick Plate	31.8	4000 N	2.30 mm	1739 N/mm	M24
CB-2204-5 THK	NR	Thick Plate	31.8	4450 N	2.30 mm	1935 N/mm	M20
CB-2205-5	NR	Thin Plate	25.4	5338 N	1.30 mm	4106 N/mm	M24
CB-2205-2 THK	NR	Thick Plate	31.8	5340 N	2.30 mm	2322 N/mm	M24
CB-2205-9	NR	Thin Plate	25.4	6339 N	1.30 mm	4876 N/mm	M24
CB-2205-3 THK	NR	Thick Plate	31.8	6670 N	2.30 mm	2900 N/mm	M24
CB-2205-7 THK	NR	Thick Plate	31.8	7117 N	2.30 mm	4255 N/mm	M24
CB-2205-70	NR	Thin Plate	25.4	7730 N	1.30 mm	5946 N/mm	M24
CB-2205-10	NR	Thin Plate	25.4	8007 N	1.30 mm	6159 N/mm	M24
CB-2205-4 THK	NR	Thick Plate	31.8	8010 N	2.30 mm	3483 N/mm	M24
CB-2205-5 THK	NR	Thick Plate	31.8	9340 N	2.30 mm	4061 N/mm	M24
CB-2203-1	NR	Thin Plate	19.1	440 N	1.30 mm	338 N/mm	M16
CB-2205-9 THK	NR	Thick Plate	31.8	12566 N	2.30 mm	5463 N/mm	M24
CB-2205-10 THK	NR	Thick Plate	31.8	15346 N	2.30 mm	6672 N/mm	M24
CB-2205-70 THK	NR	Thick Plate	31.8	17200 N	2.30 mm	7478 N/mm	M24

reset matrix

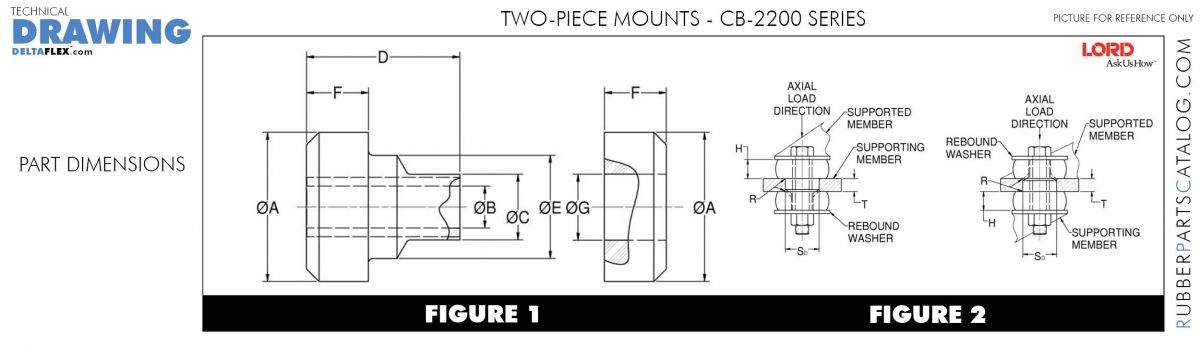

clear Part #	clear A (in.)	clear B (in.)	clear C (in.)	clear D (in.)	clear E (in.)	clear F (in.)	clear G (in.)	clear R (in.)	clear SD (in.)
CB-2201-1	1.34 in.	0.41 in.	0.58 in.	1.28 in.	0.82 in.	0.52 in.	0.62 in.	0.04 in.	0.77 in.
CB-2202-1	1.91 in.	0.55 in.	0.83 in.	1.97 in.	1.33 in.	0.81 in.	0.85 in.	0.06 in.	1.27 in.
CB-2201-2	1.34 in.	0.41 in.	0.58 in.	1.28 in.	0.82 in.	0.52 in.	0.62 in.	0.04 in.	0.77 in.
CB-2202-2	1.91 in.	0.55 in.	0.83 in.	1.97 in.	1.33 in.	0.81 in.	0.85 in.	0.06 in.	1.27 in.
CB-2202-1 THK	1.91 in.	0.55 in.	0.83 in.	1.97 in.	1.33 in.	0.81 in.	0.85 in.	0.06 in.	1.27 in.
CB-2201-3	1.34 in.	0.41 in.	0.58 in.	1.28 in.	0.82 in.	0.52 in.	0.62 in.	0.04 in.	0.77 in.
CB-2202-3	1.91 in.	0.55 in.	0.83 in.	1.97 in.	1.33 in.	0.81 in.	0.85 in.	0.06 in.	1.27 in.
CB-2202-2 THK	1.91 in.	0.55 in.	0.83 in.	1.97 in.	1.33 in.	0.81 in.	0.85 in.	0.06 in.	1.27 in.
CB-2203-1 THK	2.58 in.	0.67 in.	0.97 in.	2.46 in.	1.61 in.	0.93 in.	0.99 in.	0.09 in.	1.52 in.
CB-2204-1	3.49 in.	0.96 in.	1.45 in.	2.91 in.	2.33 in.	1.03 in.	1.50 in.	0.12 in.	2.27 in.
CB-2203-3	2.58 in.	0.67 in.	0.97 in.	2.46 in.	1.61 in.	0.93 in.	0.99 in.	0.09 in.	1.52 in.
CB-2202-3 THK	1.91 in.	0.55 in.	0.83 in.	1.97 in.	1.33 in.	0.81 in.	0.85 in.	0.06 in.	1.27 in.
CB-2201-4	1.34 in.	0.41 in.	0.58 in.	1.28 in.	0.82 in.	0.52 in.	0.62 in.	0.04 in.	0.77 in.
CB-2202-4	1.91 in.	0.55 in.	0.83 in.	1.97 in.	1.33 in.	0.81 in.	0.85 in.	0.06 in.	1.27 in.
CB-2204-2	3.49 in.	0.96 in.	1.45 in.	2.91 in.	2.33 in.	1.03 in.	1.50 in.	0.12 in.	2.27 in.
CB-2205-1	4.94 in.	1.08 in.	1.50 in.	3.41 in.	2.58 in.	1.28 in.	1.52 in.	0.12 in.	2.52 in.
CB-2203-4	2.58 in.	0.67 in.	0.97 in.	2.46 in.	1.61 in.	0.93 in.	0.99 in.	0.09 in.	1.52 in.
CB-2202-5	1.91 in.	0.55 in.	0.83 in.	1.97 in.	1.33 in.	0.81 in.	0.85 in.	0.06 in.	1.27 in.
CB-2202-4 THK	1.91 in.	0.55 in.	0.83 in.	1.97 in.	1.33 in.	0.81 in.	0.85 in.	0.06 in.	1.27 in.
CB-2203-3 THK	2.58 in.	0.67 in.	0.97 in.	2.46 in.	1.61 in.	0.93 in.	0.99 in.	0.09 in.	1.52 in.
CB-2204-3	3.49 in.	0.96 in.	1.45 in.	2.91 in.	2.33 in.	1.03 in.	1.50 in.	0.12 in.	2.27 in.
CB-2204-1 THK	3.49 in.	0.96 in.	1.45 in.	2.91 in.	2.33 in.	1.03 in.	1.50 in.	0.12 in.	2.27 in.
CB-2203-5	2.58 in.	0.67 in.	0.97 in.	2.46 in.	1.61 in.	0.93 in.	0.99 in.	0.09 in.	1.52 in.
CB-2203-4 THK	2.58 in.	0.67 in.	0.97 in.	2.46 in.	1.61 in.	0.93 in.	0.99 in.	0.09 in.	1.52 in.
CB-2204-4	3.49 in.	0.96 in.	1.45 in.	2.91 in.	2.33 in.	1.03 in.	1.50 in.	0.12 in.	2.27 in.
CB-2205-2	4.94 in.	1.08 in.	1.50 in.	3.41 in.	2.58 in.	1.28 in.	1.52 in.	0.12 in.	2.52 in.
CB-2204-2 THK	3.49 in.	0.96 in.	1.45 in.	2.91 in.	2.33 in.	1.03 in.	1.50 in.	0.12 in.	2.27 in.
CB-2204-5	3.49 in.	0.96 in.	1.45 in.	2.91 in.	2.33 in.	1.03 in.	1.50 in.	0.12 in.	2.27 in.
CB-2202-5 THK	1.91 in.	0.55 in.	0.83 in.	1.97 in.	1.33 in.	0.81 in.	0.85 in.	0.06 in.	1.27 in.
CB-2205-3	4.94 in.	1.08 in.	1.50 in.	3.41 in.	2.58 in.	1.28 in.	1.52 in.	0.12 in.	2.52 in.
CB-2204-3 THK	3.49 in.	0.96 in.	1.45 in.	2.91 in.	2.33 in.	1.03 in.	1.50 in.	0.12 in.	2.27 in.
CB-2203-5 THK	2.58 in.	0.67 in.	0.97 in.	2.46 in.	1.61 in.	0.93 in.	0.99 in.	0.09 in.	1.52 in.
CB-2205-7	4.94 in.	1.08 in.	1.50 in.	3.41 in.	2.58 in.	1.28 in.	1.52 in.	0.12 in.	2.52 in.
CB-2204-4 THK	3.49 in.	0.96 in.	1.45 in.	2.91 in.	2.33 in.	1.03 in.	1.50 in.	0.12 in.	2.27 in.
CB-2205-4	4.94 in.	1.08 in.	1.50 in.	3.41 in.	2.58 in.	1.28 in.	1.52 in.	0.12 in.	2.52 in.
CB-2205-1 THK	4.94 in.	1.08 in.	1.50 in.	3.41 in.	2.58 in.	1.28 in.	1.52 in.	0.12 in.	2.52 in.
CB-2204-5 THK	3.49 in.	0.96 in.	1.45 in.	2.91 in.	2.33 in.	1.03 in.	1.50 in.	0.12 in.	2.27 in.
CB-2205-5	4.94 in.	1.08 in.	1.50 in.	3.41 in.	2.58 in.	1.28 in.	1.52 in.	0.12 in.	2.52 in.
CB-2205-2 THK	4.94 in.	1.08 in.	1.50 in.	3.41 in.	2.58 in.	1.28 in.	1.52 in.	0.12 in.	2.52 in.
CB-2205-9	4.94 in.	1.08 in.	1.50 in.	3.41 in.	2.58 in.	1.28 in.	1.52 in.	0.12 in.	2.52 in.
CB-2205-3 THK	4.94 in.	1.08 in.	1.50 in.	3.41 in.	2.58 in.	1.28 in.	1.52 in.	0.12 in.	2.52 in.
CB-2205-7 THK	4.94 in.	1.08 in.	1.50 in.	3.41 in.	2.58 in.	1.28 in.	1.52 in.	0.12 in.	2.52 in.
CB-2205-70	4.94 in.	1.08 in.	1.50 in.	3.41 in.	2.58 in.	1.28 in.	1.52 in.	0.12 in.	2.52 in.
CB-2205-10	4.94 in.	1.08 in.	1.50 in.	3.41 in.	2.58 in.	1.28 in.	1.52 in.	0.12 in.	2.52 in.
CB-2205-4 THK	4.94 in.	1.08 in.	1.50 in.	3.41 in.	2.58 in.	1.28 in.	1.52 in.	0.12 in.	2.52 in.
CB-2205-5 THK	4.94 in.	1.08 in.	1.50 in.	3.41 in.	2.58 in.	1.28 in.	1.52 in.	0.12 in.	2.52 in.
CB-2203-1	2.58 in.	0.67 in.	0.97 in.	2.46 in.	1.61 in.	0.93 in.	0.99 in.	0.09 in.	1.52 in.
CB-2205-9 THK	4.94 in.	1.08 in.	1.50 in.	3.41 in.	2.58 in.	1.28 in.	1.52 in.	0.12 in.	2.52 in.
CB-2205-10 THK	4.94 in.	1.08 in.	1.50 in.	3.41 in.	2.58 in.	1.28 in.	1.52 in.	0.12 in.	2.52 in.
CB-2205-70 THK	4.94 in.	1.08 in.	1.50 in.	3.41 in.	2.58 in.	1.28 in.	1.52 in.	0.12 in.	2.52 in.

reset matrix

clear Part #	clear A (mm)	clear B (mm)	clear C (mm)	clear D (mm)	clear E (mm)	clear F (mm)	clear G (mm)	clear R (mm)	clear S (mm)
CB-2201-1	33.3 mm	10.2 mm	14.7 mm	31.8 mm	20.1 mm	12.3 mm	15.2 mm	1.0 mm	19.1 mm
CB-2202-1	47.8 mm	13.5 mm	21.1 mm	49.3 mm	33.0 mm	19.8 mm	21.2 mm	1.5 mm	31.8 mm
CB-2201-2	33.3 mm	10.2 mm	14.7 mm	31.8 mm	20.1 mm	12.3 mm	15.2 mm	1.0 mm	19.1 mm
CB-2202-2	47.8 mm	13.5 mm	21.1 mm	49.3 mm	33.0 mm	19.8 mm	21.2 mm	1.5 mm	31.8 mm
CB-2202-1 THK	47.8 mm	13.5 mm	21.1 mm	49.3 mm	33.0 mm	19.8 mm	21.2 mm	1.5 mm	31.8 mm
CB-2201-3	33.3 mm	10.2 mm	14.7 mm	31.8 mm	20.1 mm	12.3 mm	15.2 mm	1.0 mm	19.1 mm
CB-2202-3	47.8 mm	13.5 mm	21.1 mm	49.3 mm	33.0 mm	19.8 mm	21.2 mm	1.5 mm	31.8 mm
CB-2202-2 THK	47.8 mm	13.5 mm	21.1 mm	49.3 mm	33.0 mm	19.8 mm	21.2 mm	1.5 mm	31.8 mm
CB-2203-1 THK	64.8 mm	16.7 mm	24.6 mm	61.7 mm	40.1 mm	22.9 mm	24.8 mm	2.3 mm	38.1 mm
CB-2204-1	88.9 mm	24.1 mm	34.8 mm	73.2 mm	58.4 mm	25.4 mm	37.6 mm	3.0 mm	57.2 mm
CB-2203-3	64.8 mm	16.7 mm	24.6 mm	61.7 mm	40.1 mm	22.9 mm	24.8 mm	2.3 mm	38.1 mm
CB-2202-3 THK	47.8 mm	13.5 mm	21.1 mm	49.3 mm	33.0 mm	19.8 mm	21.2 mm	1.5 mm	31.8 mm
CB-2201-4	33.3 mm	10.2 mm	14.7 mm	31.8 mm	20.1 mm	12.3 mm	15.2 mm	1.0 mm	19.1 mm
CB-2202-4	47.8 mm	13.5 mm	21.1 mm	49.3 mm	33.0 mm	19.8 mm	21.2 mm	1.5 mm	31.8 mm
CB-2204-2	88.9 mm	24.1 mm	34.8 mm	73.2 mm	58.4 mm	25.4 mm	37.6 mm	3.0 mm	57.2 mm
CB-2205-1	124.0 mm	21.7 mm	38.1 mm	85.9 mm	64.8 mm	31.8 mm	45.7 mm	3.0 mm	63.5 mm
CB-2203-4	64.8 mm	16.7 mm	24.6 mm	61.7 mm	40.1 mm	22.9 mm	24.8 mm	2.3 mm	38.1 mm
CB-2202-5	47.8 mm	13.5 mm	21.1 mm	49.3 mm	33.0 mm	19.8 mm	21.2 mm	1.5 mm	31.8 mm
CB-2202-4 THK	47.8 mm	13.5 mm	21.1 mm	49.3 mm	33.0 mm	19.8 mm	21.2 mm	1.5 mm	31.8 mm
CB-2203-3 THK	64.8 mm	16.7 mm	24.6 mm	61.7 mm	40.1 mm	22.9 mm	24.8 mm	2.3 mm	38.1 mm
CB-2204-3	88.9 mm	24.1 mm	34.8 mm	73.2 mm	58.4 mm	25.4 mm	37.6 mm	3.0 mm	57.2 mm
CB-2204-1 THK	88.9 mm	24.1 mm	34.8 mm	73.2 mm	58.4 mm	25.4 mm	37.6 mm	3.0 mm	57.2 mm
CB-2203-5	64.8 mm	16.7 mm	24.6 mm	61.7 mm	40.1 mm	22.9 mm	24.8 mm	2.3 mm	38.1 mm
CB-2203-4 THK	64.8 mm	16.7 mm	24.6 mm	61.7 mm	40.1 mm	22.9 mm	24.8 mm	2.3 mm	38.1 mm
CB-2204-4	88.9 mm	24.1 mm	34.8 mm	73.2 mm	58.4 mm	25.4 mm	37.6 mm	3.0 mm	57.2 mm
CB-2205-2	124.0 mm	21.7 mm	38.1 mm	85.9 mm	64.8 mm	31.8 mm	45.7 mm	3.0 mm	63.5 mm
CB-2204-2 THK	88.9 mm	24.1 mm	34.8 mm	73.2 mm	58.4 mm	25.4 mm	37.6 mm	3.0 mm	57.2 mm
CB-2204-5	88.9 mm	24.1 mm	34.8 mm	73.2 mm	58.4 mm	25.4 mm	37.6 mm	3.0 mm	57.2 mm
CB-2202-5 THK	47.8 mm	13.5 mm	21.1 mm	49.3 mm	33.0 mm	19.8 mm	21.2 mm	1.5 mm	31.8 mm
CB-2205-3	124.0 mm	21.7 mm	38.1 mm	85.9 mm	64.8 mm	31.8 mm	45.7 mm	3.0 mm	63.5 mm
CB-2204-3 THK	88.9 mm	24.1 mm	34.8 mm	73.2 mm	58.4 mm	25.4 mm	37.6 mm	3.0 mm	57.2 mm
CB-2203-5 THK	64.8 mm	16.7 mm	24.6 mm	61.7 mm	40.1 mm	22.9 mm	24.8 mm	2.3 mm	38.1 mm
CB-2205-7	124.0 mm	21.7 mm	38.1 mm	85.9 mm	64.8 mm	31.8 mm	45.7 mm	3.0 mm	63.5 mm
CB-2204-4 THK	88.9 mm	24.1 mm	34.8 mm	73.2 mm	58.4 mm	25.4 mm	37.6 mm	3.0 mm	57.2 mm
CB-2205-4	124.0 mm	21.7 mm	38.1 mm	85.9 mm	64.8 mm	31.8 mm	45.7 mm	3.0 mm	63.5 mm
CB-2205-1 THK	124.0 mm	21.7 mm	38.1 mm	85.9 mm	64.8 mm	31.8 mm	45.7 mm	3.0 mm	63.5 mm
CB-2204-5 THK	88.9 mm	24.1 mm	34.8 mm	73.2 mm	58.4 mm	25.4 mm	37.6 mm	3.0 mm	57.2 mm
CB-2205-5	124.0 mm	21.7 mm	38.1 mm	85.9 mm	64.8 mm	31.8 mm	45.7 mm	3.0 mm	63.5 mm
CB-2205-2 THK	124.0 mm	21.7 mm	38.1 mm	85.9 mm	64.8 mm	31.8 mm	45.7 mm	3.0 mm	63.5 mm
CB-2205-9	124.0 mm	21.7 mm	38.1 mm	85.9 mm	64.8 mm	31.8 mm	45.7 mm	3.0 mm	63.5 mm
CB-2205-3 THK	124.0 mm	21.7 mm	38.1 mm	85.9 mm	64.8 mm	31.8 mm	45.7 mm	3.0 mm	63.5 mm
CB-2205-7 THK	124.0 mm	21.7 mm	38.1 mm	85.9 mm	64.8 mm	31.8 mm	45.7 mm	3.0 mm	63.5 mm
CB-2205-70	124.0 mm	27.1 mm	38.1 mm	85.9 mm	64.8 mm	31.8 mm	45.7 mm	3.0 mm	63.5 mm
CB-2205-10	124.0 mm	21.7 mm	38.1 mm	85.9 mm	64.8 mm	31.8 mm	45.7 mm	3.0 mm	63.5 mm
CB-2205-4 THK	124.0 mm	21.7 mm	38.1 mm	85.9 mm	64.8 mm	31.8 mm	45.7 mm	3.0 mm	63.5 mm
CB-2205-5 THK	124.0 mm	21.7 mm	38.1 mm	85.9 mm	64.8 mm	31.8 mm	45.7 mm	3.0 mm	63.5 mm
CB-2203-1	64.8 mm	16.7 mm	24.6 mm	61.7 mm	40.1 mm	22.9 mm	24.8 mm	2.3 mm	38.1 mm
CB-2205-9 THK	124.0 mm	21.7 mm	38.1 mm	85.9 mm	64.8 mm	31.8 mm	45.7 mm	3.0 mm	63.5 mm
CB-2205-10 THK	124.0 mm	21.7 mm	38.1 mm	85.9 mm	64.8 mm	31.8 mm	45.7 mm	3.0 mm	63.5 mm
CB-2205-70 THK	124.0 mm	27.1 mm	38.1 mm	85.9 mm	64.8 mm	31.8 mm	45.7 mm	3.0 mm	63.5 mm

LORD CB-2200 SERIES TWO-PIECE RUBBER MOUNTS / ISOLATORS

REQUEST A QUOTE - LORD CB-2200 SERIES TWO-PIECE RUBBER MOUNTS / ISOLATORS

Thank you...for putting DeltaFlex to work for you.

Quick Quote

CUSTOMER SUPPORT QUESTION - LORD CB-2200 SERIES TWO-PIECE RUBBER MOUNTS / ISOLATORS

Thank you...for putting DeltaFlex to work for you.

Ask A Question

ENGINEERING ASSISTANCE - LORD CB-2200 SERIES TWO-PIECE RUBBER MOUNTS / ISOLATORS

Engineering Support

Ready to learn how our

Rubber Parts & Services

can help your business?

PRODUCTS

PRODUCTS (cont.)

PRODUCTS (cont.)

RubberPartsCatalog.com
