AN931 MIL-SPEC RUBBER GROMMET | OIL RESISTANT ARMY NAVY MILITARY GROMMETS
DeltaFlex carries BUNA-N (Nitrile) AN931 Rubber Military Grommets. These rubber grommet can be in contact with oils.
- Oil Resistant BUNA- N (Nitrile)
- 50 DURO
- BLACK in Color
- Split on request
Panel / Plate Thickness by letter

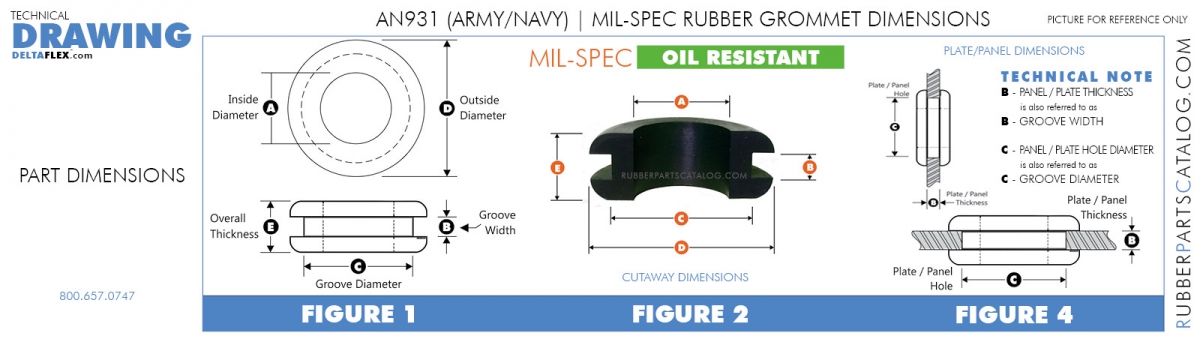

The AN931 offers multiple Groove Width (GW) sizes denoted by a letter. The letter in the AN931 part number denotes the size of the groove width, also referred to as Panel or Plate thickness. Please see the table and drawing below.
- – - 1/16" (GW) Groove Width
- A - 1/8" (GW) Groove Width
- B - 3/16" (GW) Groove Width
- C - 1/4" (GW) Groove Width
- (EX: AN931-C7-S-11). An "S" between first and second dash numbers indicates that split grommets are available.
AN931 (ALT) and MS35489 Rubber Grommets are in separate lists and integrated with our Standard Rubber Grommets.
If you or your customer require a PPAP or detailed material test data sheet, a fee and minimum order quantity may be required.
Please keep in mind...DeltaFlex is also a manufacturer of rubber parts, if you can not find the exact rubber parts you are looking for we can make it for you. If you need assistance please use the webform to the right or if you require immediate assistance, please call 262.632.2345.
